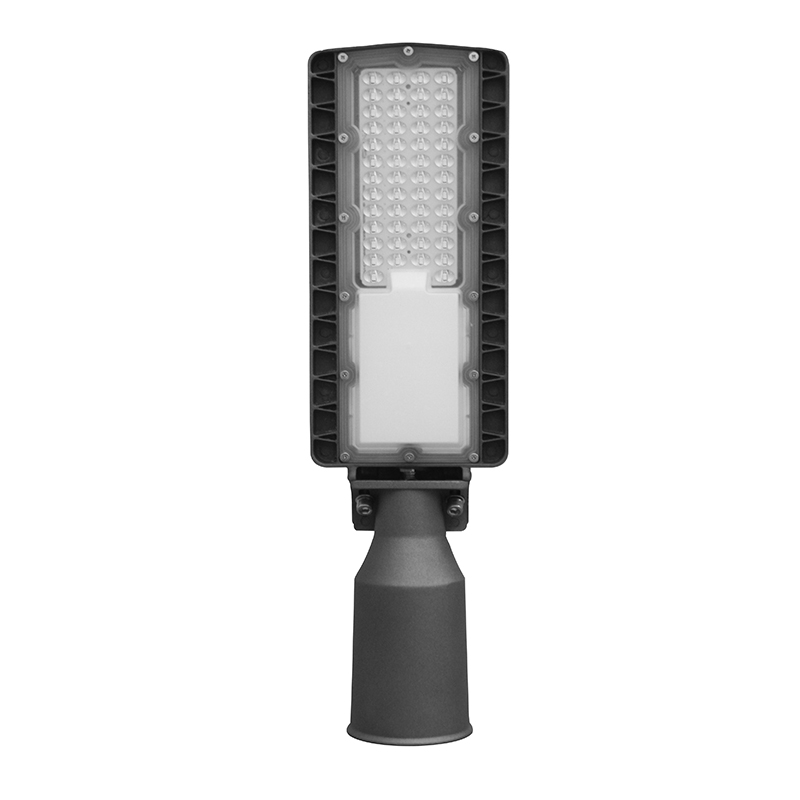

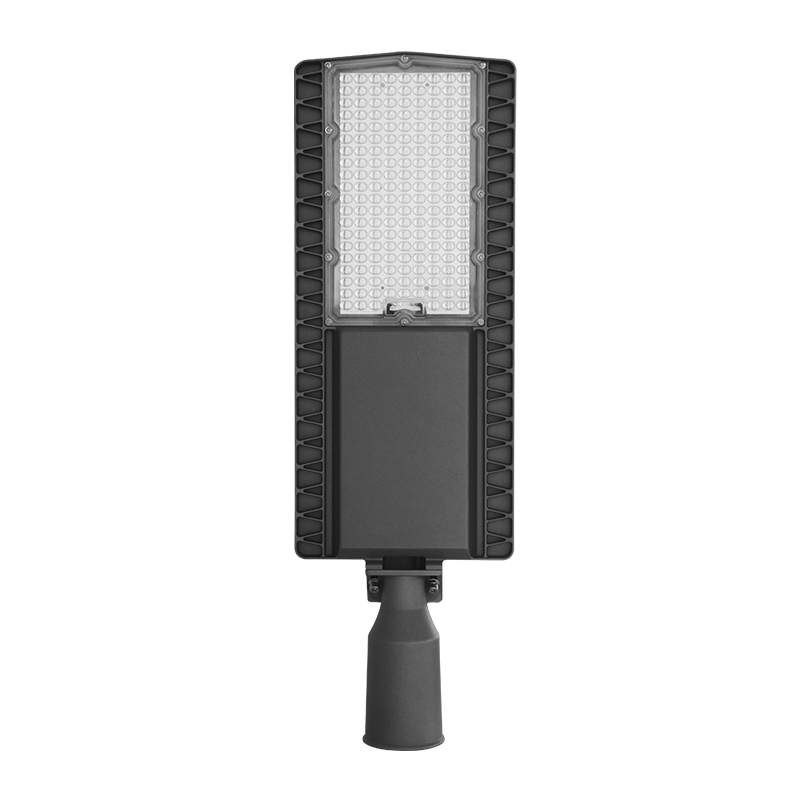

ST112 30W-240W led economical street lighting luminaires for roadway light

Model No.

Power

L*W*H(mm)

IP Level

Protection Level

GLD-ST112S

30W-50W

456x122x77

IP66

IK09

GLD-ST112M

80W-100W

536x166x77

IP66

IK09

GLD-ST112L

120W-150W

618x180x77

IP66

IK09

Product Details

Model

GLD-ST112

Light Source

Integral LED Module

Power

30W/50W/80W/100W/150W

Luminaire Efficacy

120-150lm/W

CCT

4000K (3000K/5000K/5700K upon request)

CRI

> 70/ > 80 (upon request)

Lifetime

100,000 hours at 25℃ ambient temperature

Beam angle

TYPE Ⅱ

Operating Temperature

-30 to 45℃

Driver

Geolide or DOB

Dimming

Astro DIM for autonomous dimming with five independent levels
Smart control management system

Options

Photocell
Surge protection device (up to 20KV)
0.5m External cable(Other length upon request)
Smart control device
Motion detection

Materials

Housing: ADC12 die-cast aluminum
Cover: PC
Screws: 304 stainless screws

Spray

Finished by high-end outdoor epoxy power,resistant corrosion

Color

Grey/Black/White

Install tube Dia

D60

Tightness Level

IP66

Impact Resistance

IK09

Standards          & Certifications

CE/ENEC/CB/GS/IEC/ROHS/LM80/TM21



Ningbo Geolide Illuminate Co., Limited is a professional China LED Street Lights Manufacturers and Street Light factory&supplier,which is found in 2010 as a stock company focus on development,production,marketing of die casting Led street light housing,Led light housing,Led Street Light,Led Garden Light,Led Flood Light,Led High Bay Light ETC.Our company mainly manufactures middle and high-end products.

We have a very experienced LED R&D team, with more knowledgeable engineers, helping our customers customize products,making thermal simulation, defining light distribution, and supplying OEM die-casting, as well as CKD/SKD.
