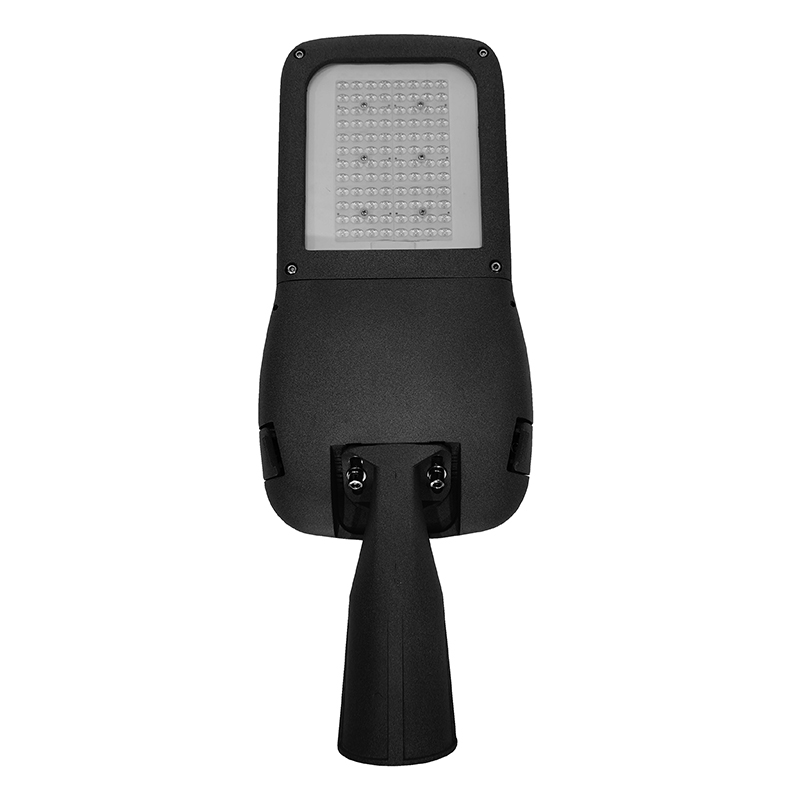

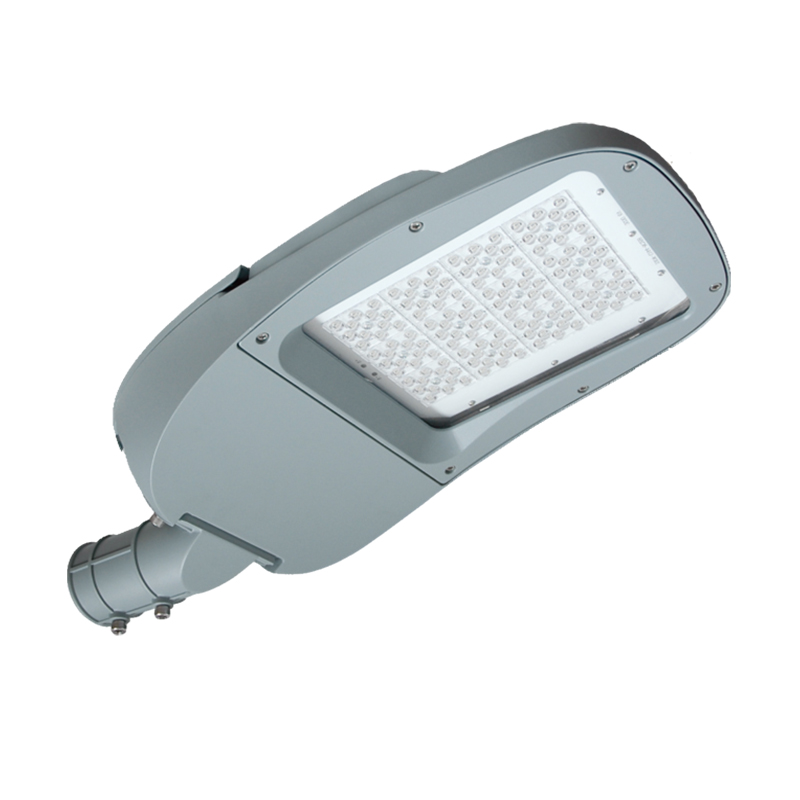

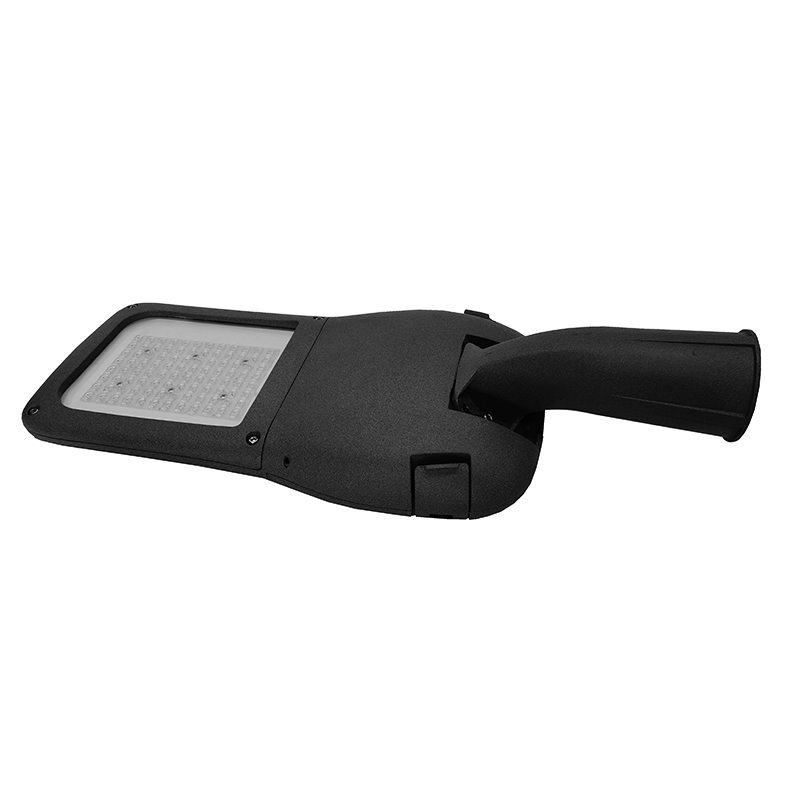

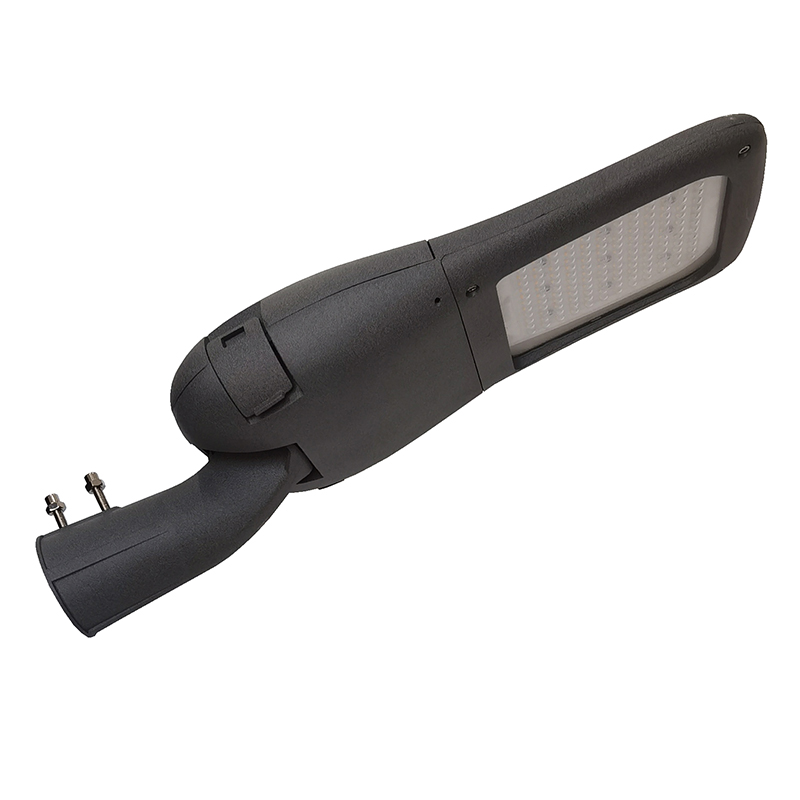

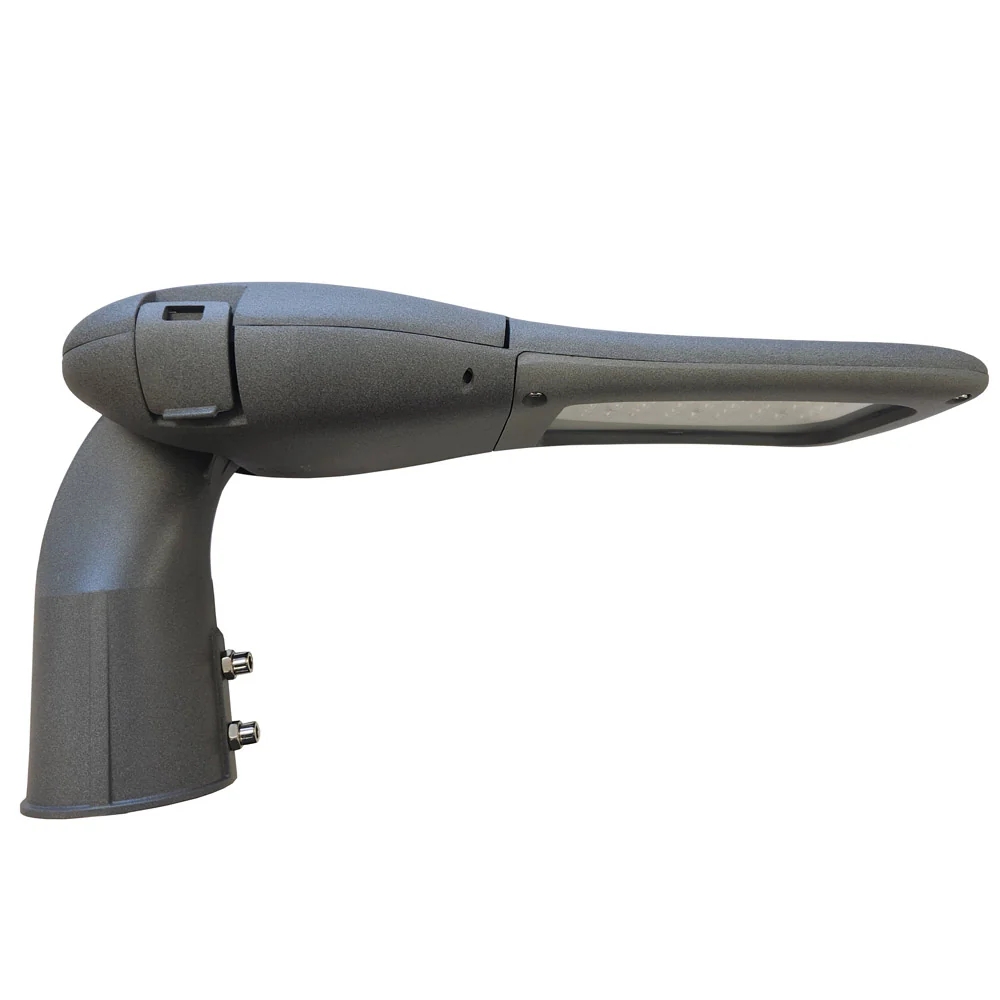

ST108 30W-240W led street lighting luminaires for roadway lamp fixture IP66

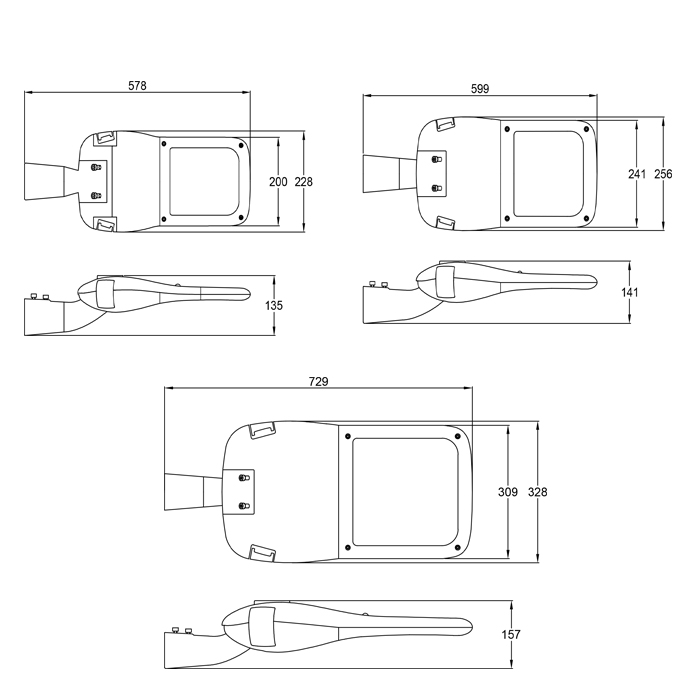

Model No.

Power

L*W*H(mm)

IP Level

Protection Level

GLD-ST108-S

30W-100W

578x228x35

IP66

IK09

GLD-ST108-M

120W-150W

599x256x141

IP66

IK09

GLD-ST108-L

180W-240W

729x328x157

IP66

IK09

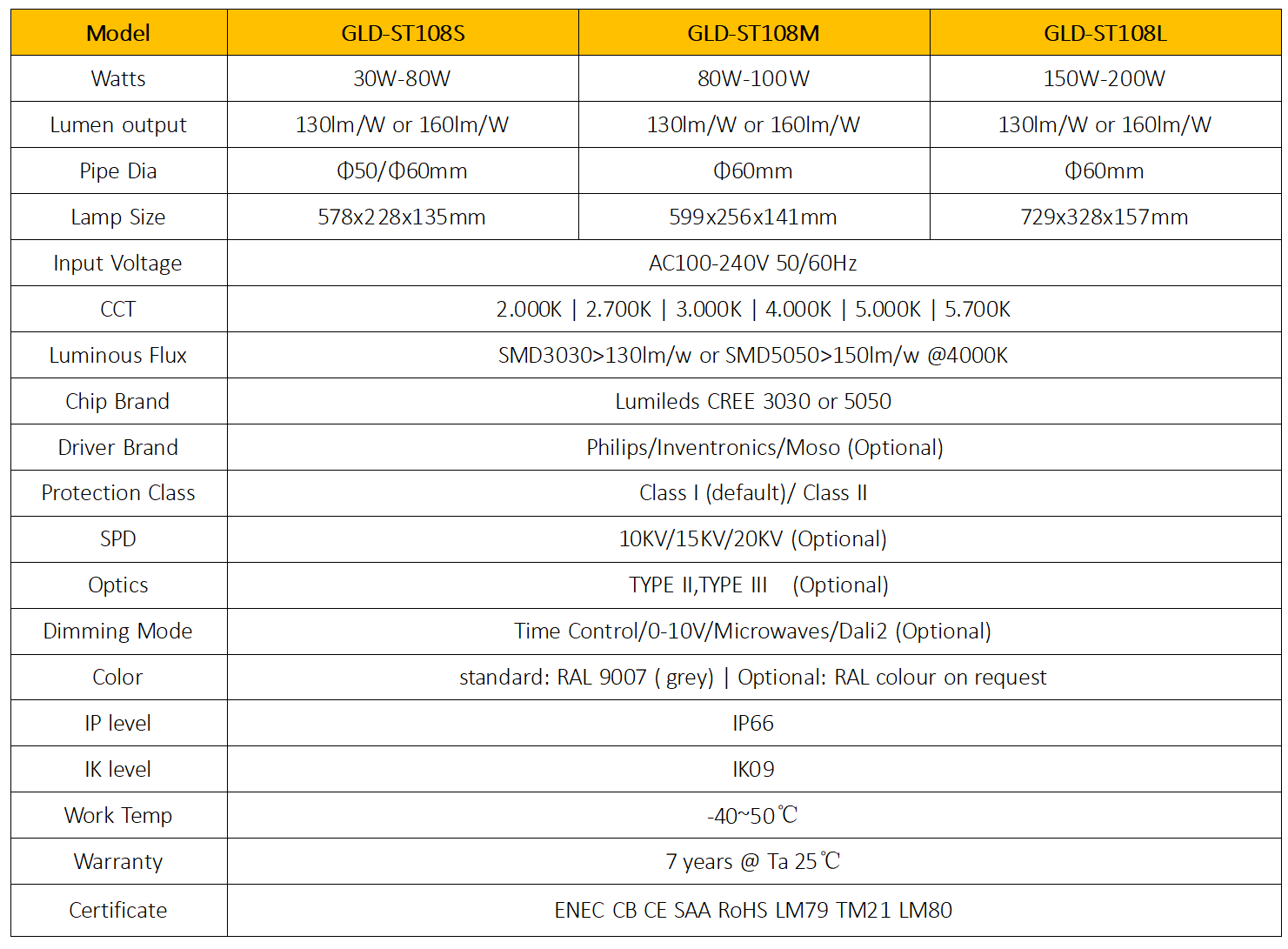

Product Details

Model

GLD-ST108

Light Source

Integral LED Module

Power

50W/80W/100W/150W/180W/240W

Led Chips

SMD3030 48pcs/72pcs/96pcs/108pcs/144pcs/192pcs/240pcs

Install tube Dia

D50/D60MM

Luminaire Efficacy

110-150lm/W

CCT

4000K (3000K/5000K/5700K upon request)

CRI

> 70/ > 80 (upon request)

Voltage

AC100-240V

Lifetime

100,000 hours at 25℃ ambient temperature

Beam angle

TYPE Ⅱ、Ⅲ

Driver

Philips、SOSEN、INVENR、Geolide

Options

Photocell
Surge protection device (up to 20KV)
0.5m External cable(Other length upon request)
Smart control device
Motion detection

Materials

Housing: ADC12 die-cast aluminum
Cover: Toughened Glass
Screws: 304 stainless screws

Spray

Finished by high-end outdoor epoxy power,resistant corrosion

Color

Grey/Black/White

Tightness Level

IP66

Impact Resistance

IK09

Standards& Certifications

CE/ENEC/CB/GS/IEC/ROHS/LM80/TM21



Ningbo Geolide Illuminate Co., Limited is a professional China LED Street Lights Manufacturers and Street Light factory&supplier,which is found in 2010 as a stock company focus on development,production,marketing of die casting Led street light housing,Led light housing,Led Street Light,Led Garden Light,Led Flood Light,Led High Bay Light ETC.Our company mainly manufactures middle and high-end products.

We have a very experienced LED R&D team, with more knowledgeable engineers, helping our customers customize products,making thermal simulation, defining light distribution, and supplying OEM die-casting, as well as CKD/SKD.
