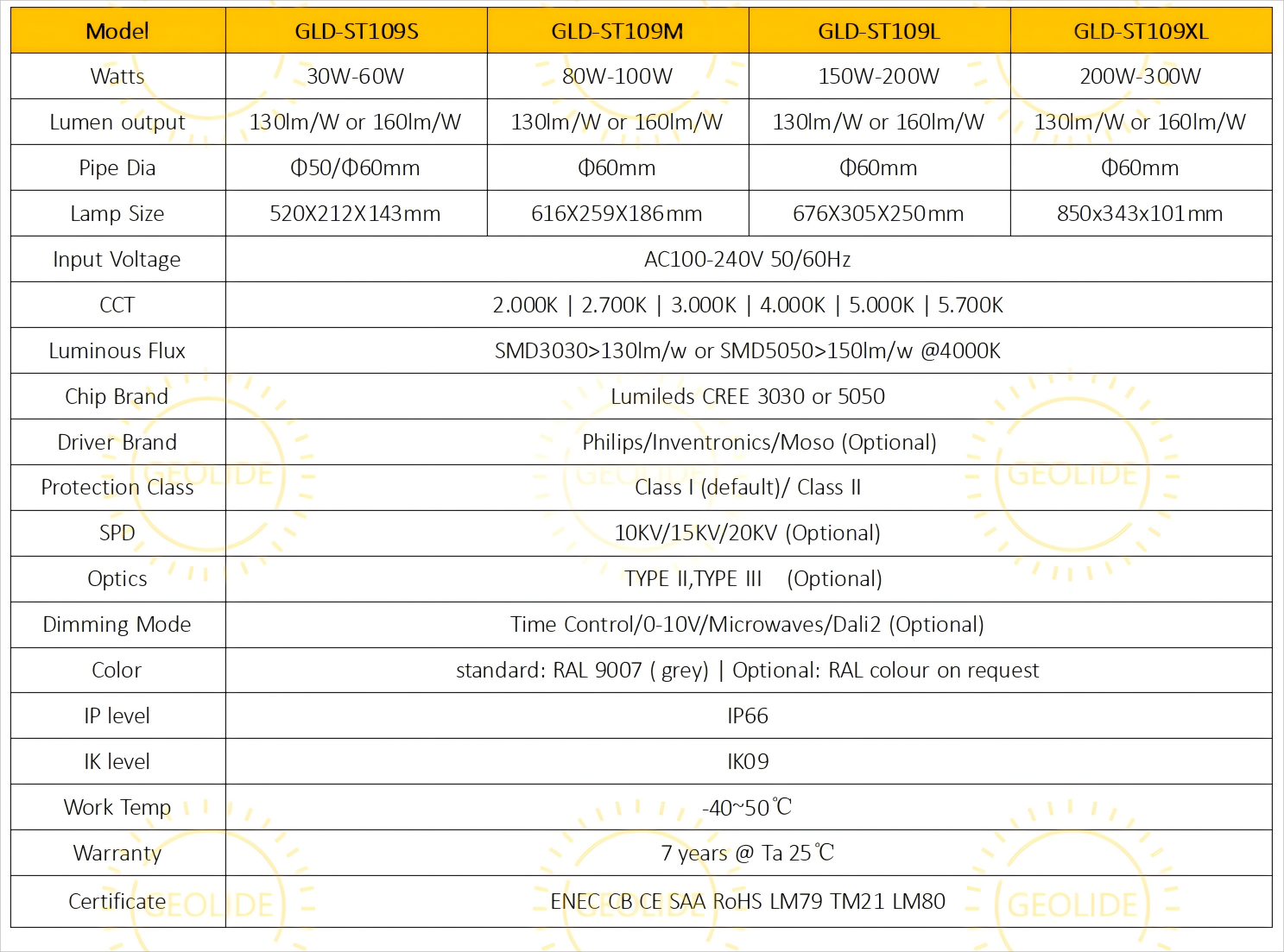

ST109 30W-50W-240W 120-150Lm/W Led Street Lights

Model No.

Power

L*W*H (mm)

IP Level

Protection Level

GLD-ST109A

30W/50W

520X212X90

IP66

IK09

GLD-ST109B

60W/80W

616X259X186

IP66

IK09

GLD-ST109C

100W/150W

676X305X250

IP66

IK09

GLD-ST109D

180W/240W

860X370X290

IP66

IK09

Product Details

Model

GLD-ST109

Light Source

Integral LED Module

Power

50W/80W/100W/150W/180W

Led Chips

SMD3030 48pcs/72pcs/96pcs/108pcs/144pcs/192pcs/240pcs

Install tube Dia

D50/D60MM

Luminaire Efficacy

110-150lm/W

CCT

4000K (3000K/5000K/5700K upon request)

CRI

> 70/ > 80 (upon request)

Voltage

AC100-240V

Lifetime

100,000 hours at 25℃ ambient temperature

Beam angle

TYPE Ⅱ、Ⅲ

Driver

Philips、SOSEN、INVENR、Geolide

Options

Photocell
Surge protection device (up to 20KV)
0.5m External cable(Other length upon request)
Smart control device
Motion detection

Materials

Housing: ADC12 die-cast aluminum
Cover: Toughened Glass
Screws: 304 stainless screws

Spray

Finished by high-end outdoor epoxy power,resistant corrosion

Color

Grey/Black/White

Tightness Level

IP66

Impact Resistance

IK09

Standards & Certifications

CE/ENEC/CB/GS/IEC/ROHS/LM80/TM21

Ningbo Geolide Illuminate Co., Limited is a professional China Die Casting Led Street Lights Housing Manufacturers and Street lamps factory&supplier,which is found in 2010 as a stock company focus on development,production,marketing of die casting High Power 30W/50W/100W/150W/180W/300W LED street light housing,Led light housing,Led Street Light,Led Garden Light,Led Flood Light,Led High Bay Light ETC.Our company mainly manufactures middle and high-end products.

Application


This heavy-duty, modern design and cost-effective LED street light housing fixture is typically used as 30W-300W LED street lighting fixture. LED street lighting is used extensively in urban settings, along small town downtown main streets, in residential neighborhoods, in commercial districts, public squares, in industrial parks, at interstate highway interchanges, bridges, and rural intersections.
