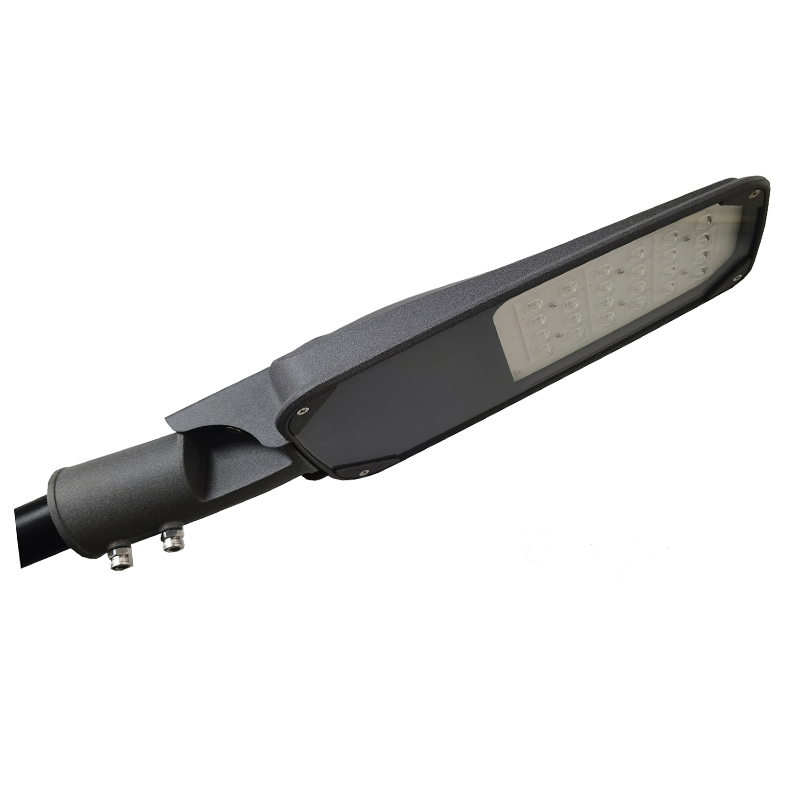

ST103 30W-80W-100W IP66 die casting aluminum Led Road Lights

Model No.

Power

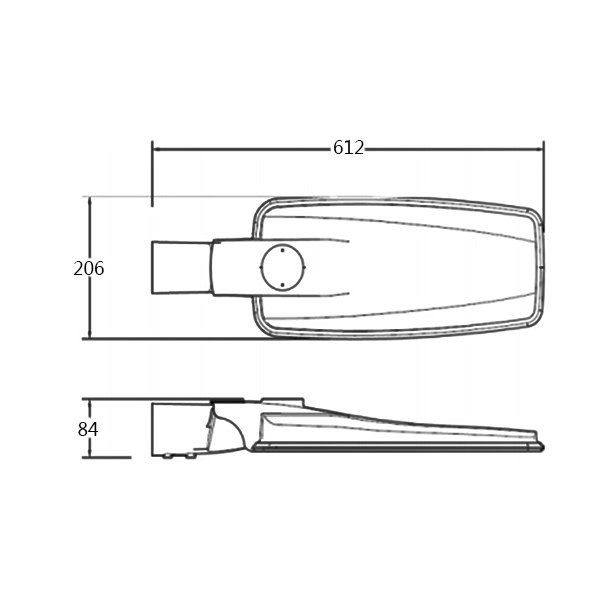

L*W*H(mm)

IP

Install ways

GLD-ST103-Mini

30W-60W

512x180X85

IP66

Post-top or Side-Entry

GLD-ST103-S

80W-100W

612x206x84

IP66

GLD-ST103-M

120W-150W

633x239x87

IP66

GLD-ST103-L

180W-240W

776x309x89

IP66

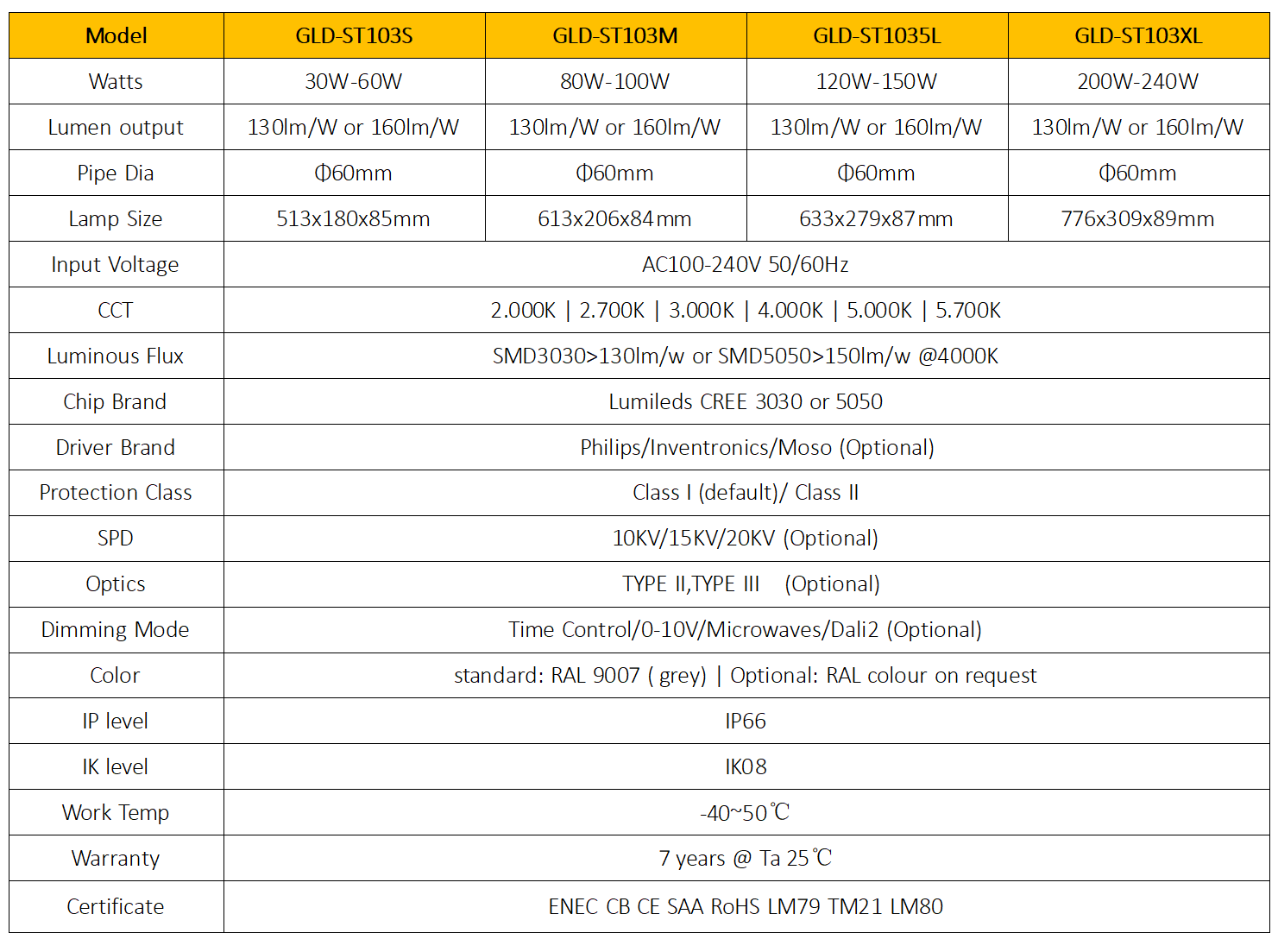

Product Details

Model

GLD-ST103

Light Source

Integral LED Module

Power

30W/50W/80W/100W/150W/200W

Led Chips

SMD3030 48pcs/72pcs/96pcs/108pcs/240pcs/384pcs

Install tube Dia

D50/D60

Luminaire Efficacy

110-150lm/W

CCT

4000K (3000K/5000K/5700K upon request)

Voltage

AC90-305V

CRI

> 70/ > 80 (upon request)

Lifetime

100,000 hours at 25℃ ambient temperature

Beam angle

TYPE Ⅱ、Ⅲ

Driver

Philips、SOSEN、INVENR、Geolide

Options

Photocell
Surge protection device (up to 20KV)
0.5m External cable(Other length upon request)
Smart control device
Motion detection

Materials

Housing: ADC12 die-cast aluminum
Cover: Toughened Glass
Screws: 304 stainless screws

Spray

Finished by high-end outdoor epoxy power,resistant corrosion

Color

Grey/Black/White

Tightness Level

IP66

Impact Resistance

IK09

Standards          & Certifications

CE/ENEC/CB/GS/IEC/ROHS/LM80/TM21

Ningbo Geolide Illuminate Co., Limited is a professional China Die Casting Led Street Lights Housing Manufacturers and Street lamps factory&supplier,which is found in 2010 as a stock company focus on development,production,marketing of die casting High Power 30W/50W/100W/150W/180W/300W LED street light housing,Led light housing,Led Street Light,Led Garden Light,Led Flood Light,Led High Bay Light ETC.Our company mainly manufactures middle and high-end products.

Application


This heavy-duty, modern design and cost-effective LED street light housing fixture is typically used as 30W-300W LED street lighting fixture. LED street lighting is used extensively in urban settings, along small town downtown main streets, in residential neighborhoods, in commercial districts, public squares, in industrial parks, at interstate highway interchanges, bridges, and rural intersections.
