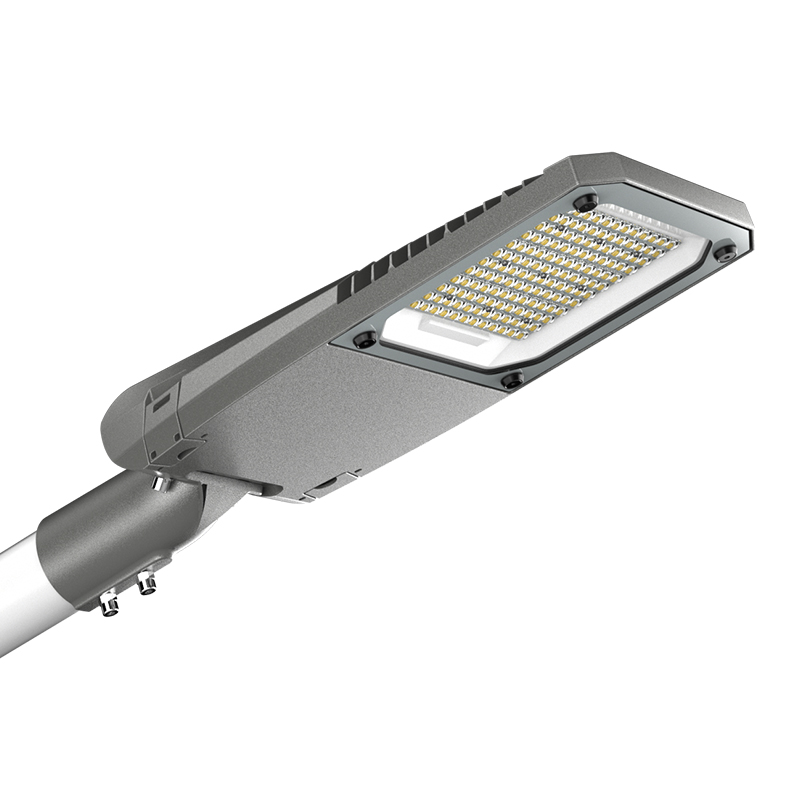

ST114 30W-300W led street lighting luminaires for roadway light

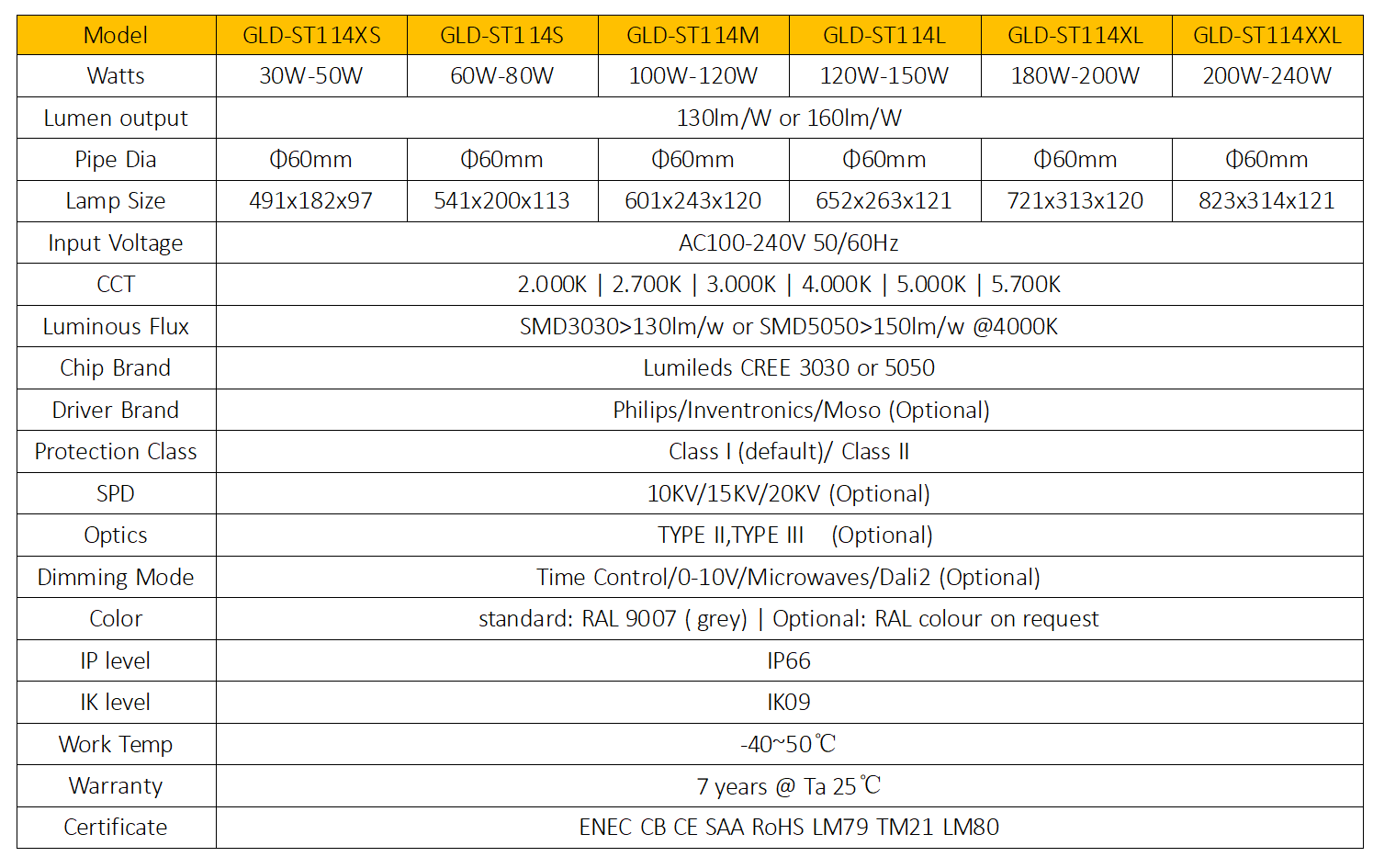

Model No.

Power

L*W*H(mm)

IP Level

Protection Level

GLD-ST114XS

30W-50W

491x182x97

IP66

IK09

GLD-ST114S

60W-80W

541x200x113

IP66

IK09

GLD-ST114M

80W-120W

601x243x120

IP66

IK09

GLD-ST114L

120W-150W

652x263x121

IP66

IK09

GLD-ST114XL

150W-200W

721x313x121

IP66

IK09

GLD-ST114XXL

240W-300W

853x313x125

IP66

IK09

Product Details

Model

GLD-ST114

Light Source

Integral LED Module

Power

30W/50W/100W/150W/200W/240W/300W

Luminaire Efficacy

130-170lm/W

CCT

4000K (3000K/5000K/5700K upon request)

CRI

> 70/ > 80 (upon request)

Lifetime

100,000 hours at 25℃ ambient temperature

Beam angle

TYPE Ⅱ、Ⅲ

Operating Temperature

-30 to 45℃

Driver

Philips、SOSEN、INVENR、Geolide

Dimming

Dali 1-10V PWM
Astro DIM for autonomous dimming with five independent levels
Smart control management system

Options

Photocell
Surge protection device (up to 20KV)
0.5m External cable(Other length upon request)
Smart control device
Motion detection

Materials

Housing: ADC12 die-cast aluminum
Cover: Toughened Glass
Screws: 304 stainless screws

Spray

Finished by high-end outdoor epoxy power,resistant corrosion

Color

Grey/Black/White

Install tube Dia

D50/D60

Tightness Level

IP66

Impact Resistance

IK09

Standards          & Certifications

CE/ENEC/CB/GS/IEC/ROHS/LM80/TM21



Ningbo Geolide Illuminate Co., Limited is a professional China LED Street Lights Manufacturers and Street Light factory&supplier,which is found in 2010 as a stock company focus on development,production,marketing of die casting Led street light housing,Led light housing,Led Street Light,Led Garden Light,Led Flood Light,Led High Bay Light ETC.Our company mainly manufactures middle and high-end products.

We have a very experienced LED R&D team, with more knowledgeable engineers, helping our customers customize products,making thermal simulation, defining light distribution, and supplying OEM die-casting, as well as CKD/SKD.
