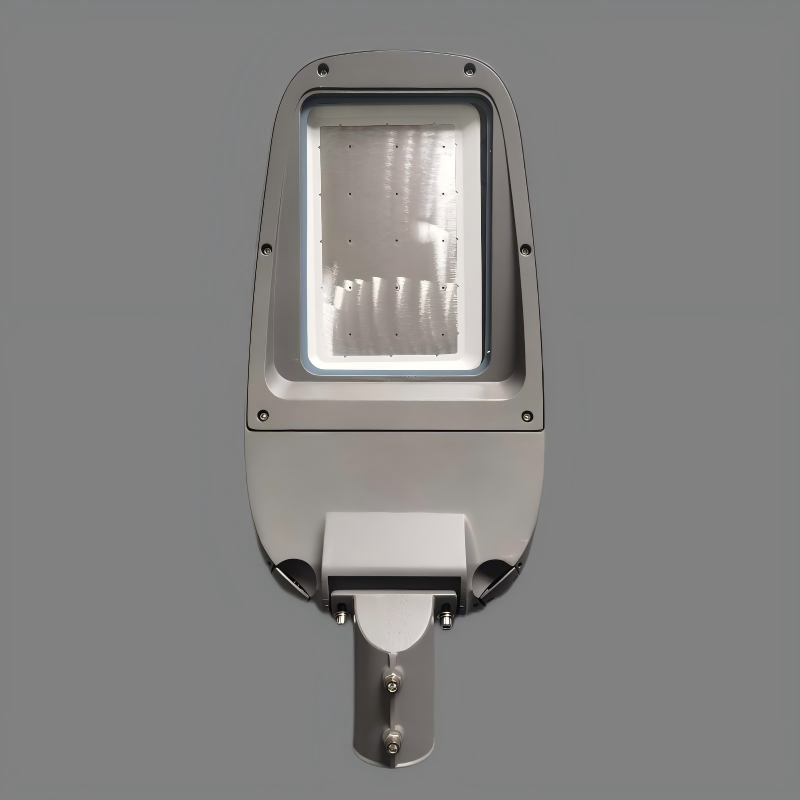

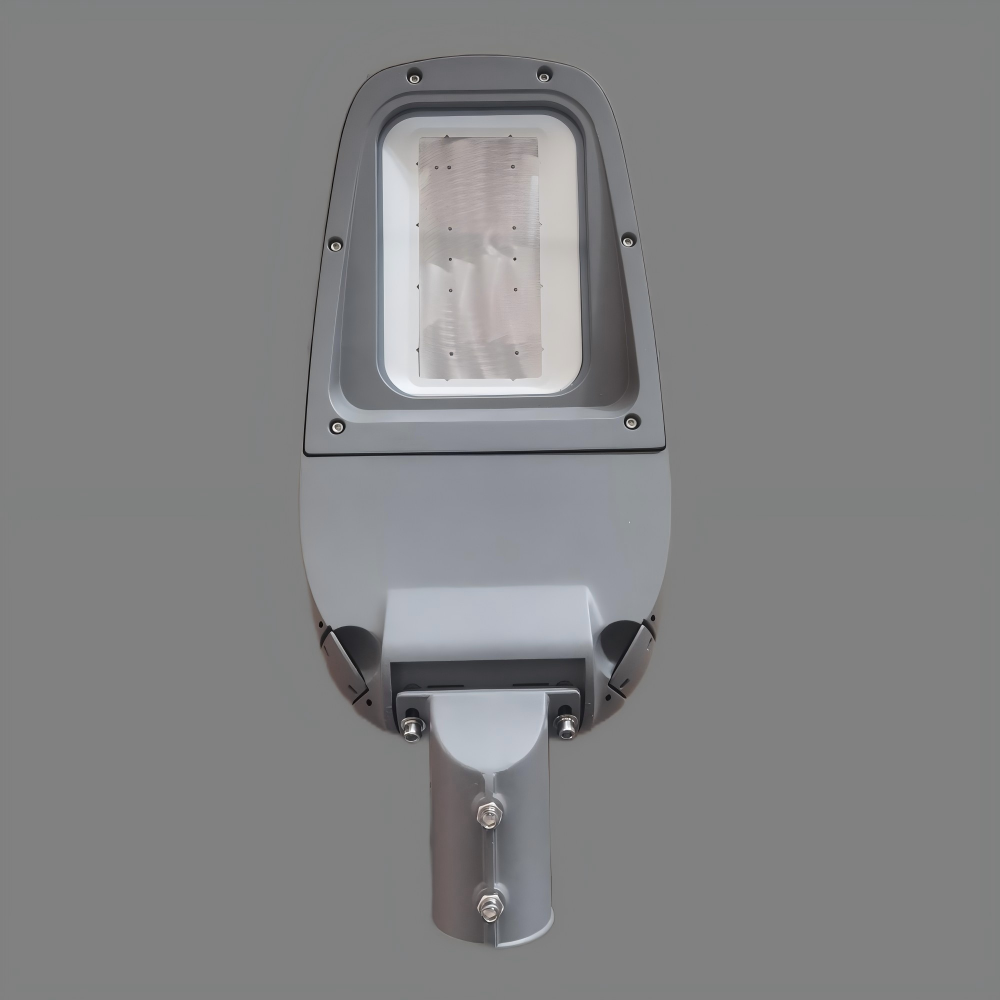

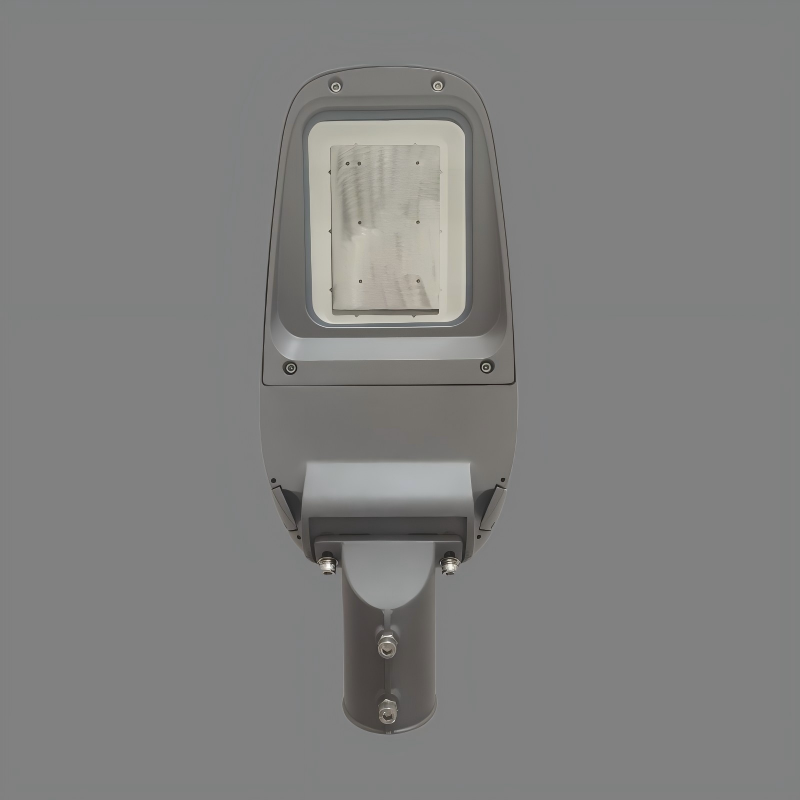

ST110EM Tool-less empty led street light luminaires housing factory for roadway light 30W-150W IP66 IK09 Version 2.0 source mold

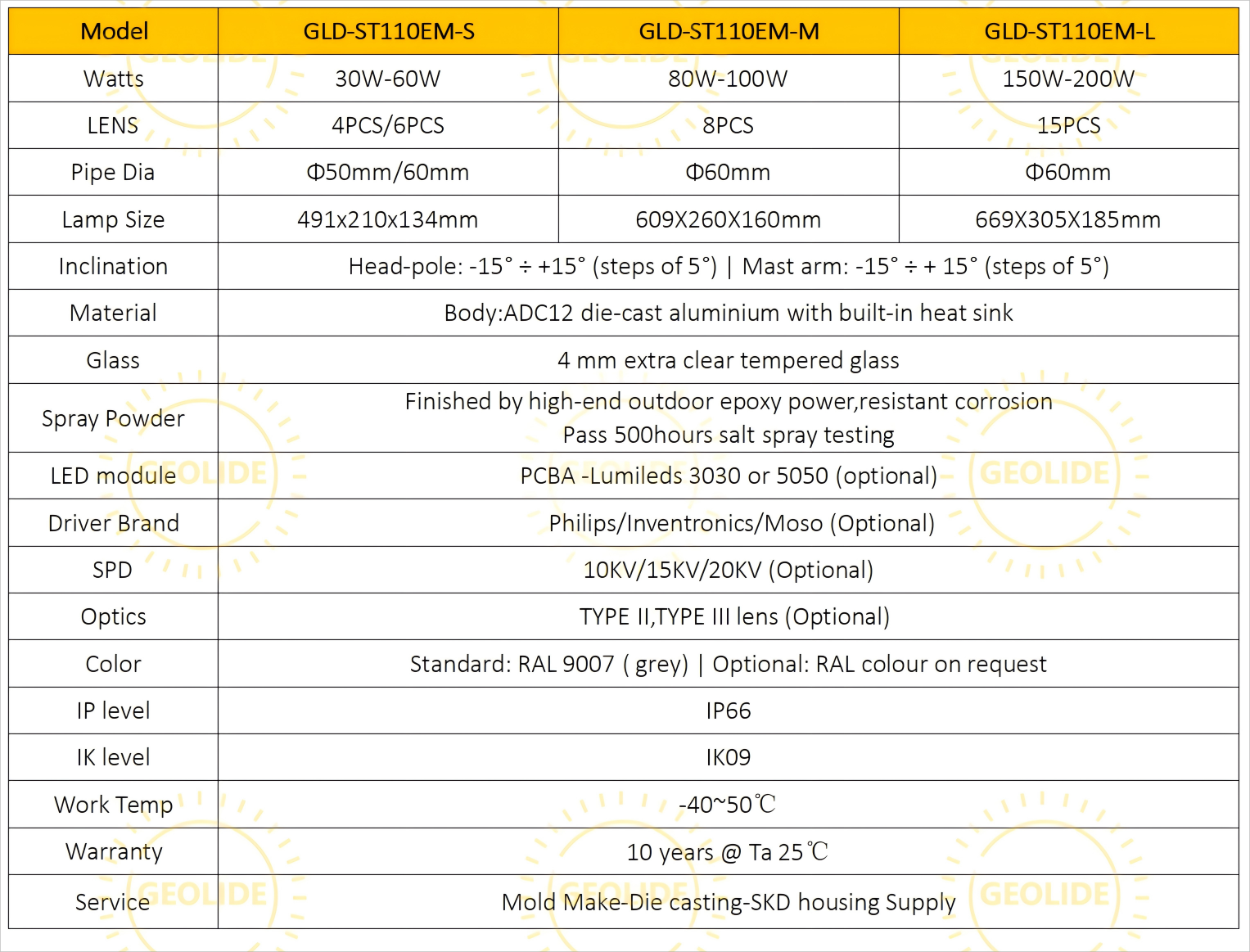

Model No.

Power

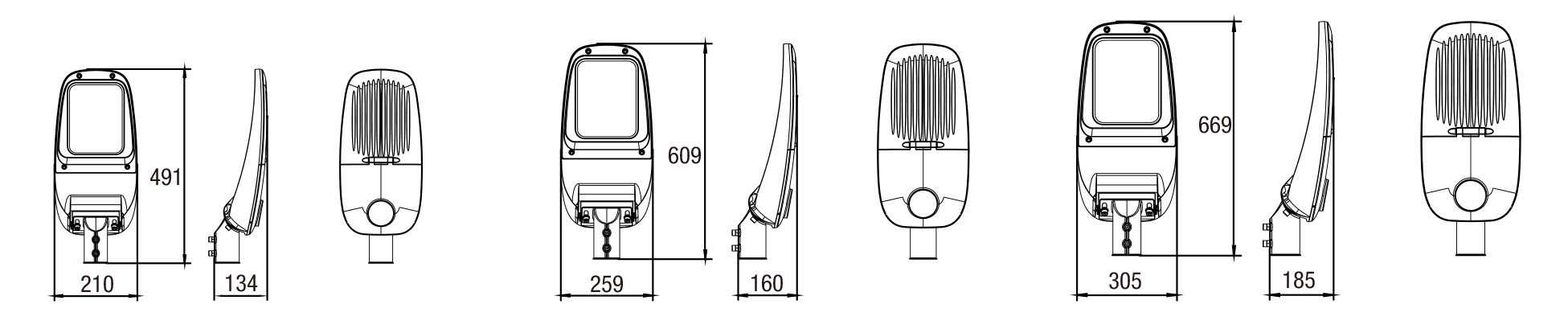

L*W*H(mm)

IP Level

Protection Level

GLD-ST110EM-S

30W-60W

491x210x135

IP66

IK09

GLD-ST110EM-M

80W-100W

609x259x161

IP66

IK09

GLD-ST110EM-L

120W-160W

669x305x185

IP66

IK09


Product Details

Model

GLD-ST110EM

Power

30W/50W/80W/100W/160W

IP level

IP66

IK level

IK09

Install Tube Dia

D50/D60mm

Install ways

+ - 15degree adjustable both Post-top or Side-Entry mounted

Materials

Housing: ADC12 die-cast aluminum
Cover:4MM Thick Toughened Glass                                           Quality Silicon Seal Gasket  M16 Cable Gland
Screws: 304 stainless screws

Spray

Finished by high-end outdoor epoxy power, resistant corrosion, 500hours salt spray testing certificates, no problem use on the seaside road

Advantage

The top cover uses a large area heat-sink fin design theory, in favor of the convection between cold and hot air, to keep the good heat dissipation of lamps and finally increase the light whole time light  Ventilation design theory to dust prevention & prevent stagnant water to achieve the light long-lifetime

Color

Grey/Black/White

Accessories are optional

PCB(w/o led), Lens

Electric Parts  are optional

Sosen, Inventronics, Meanwell or Specified brand; SMD3030, SMD5050, CREE


Ningbo Geolide Illuminate Co., Limited is a professional China Die Casting Led Street Lighting luminaires  Housing Manufacturers and Street lamps factory&supplier, which is found in 2010 as a stock company focused on the development, production, and marketing of die casting High Power 30W/50W/100W/150W/180W/300W LED street light housing, Led light housing, Led Street Light, Led Garden Light, Led urban light Led Flood Light, Led High Bay Light ETC. Our company mainly manufactures middle and high-end products.

Application

This heavy-duty, modern design and cost-effective LED street light housing fixture is typically used as 30W-300W LED street lighting fixture. LED street lighting is used extensively in urban settings, along small town downtown main streets, in residential neighborhoods, in commercial districts, public squares, in industrial parks, at interstate highway interchanges, bridges, and rural intersections.
