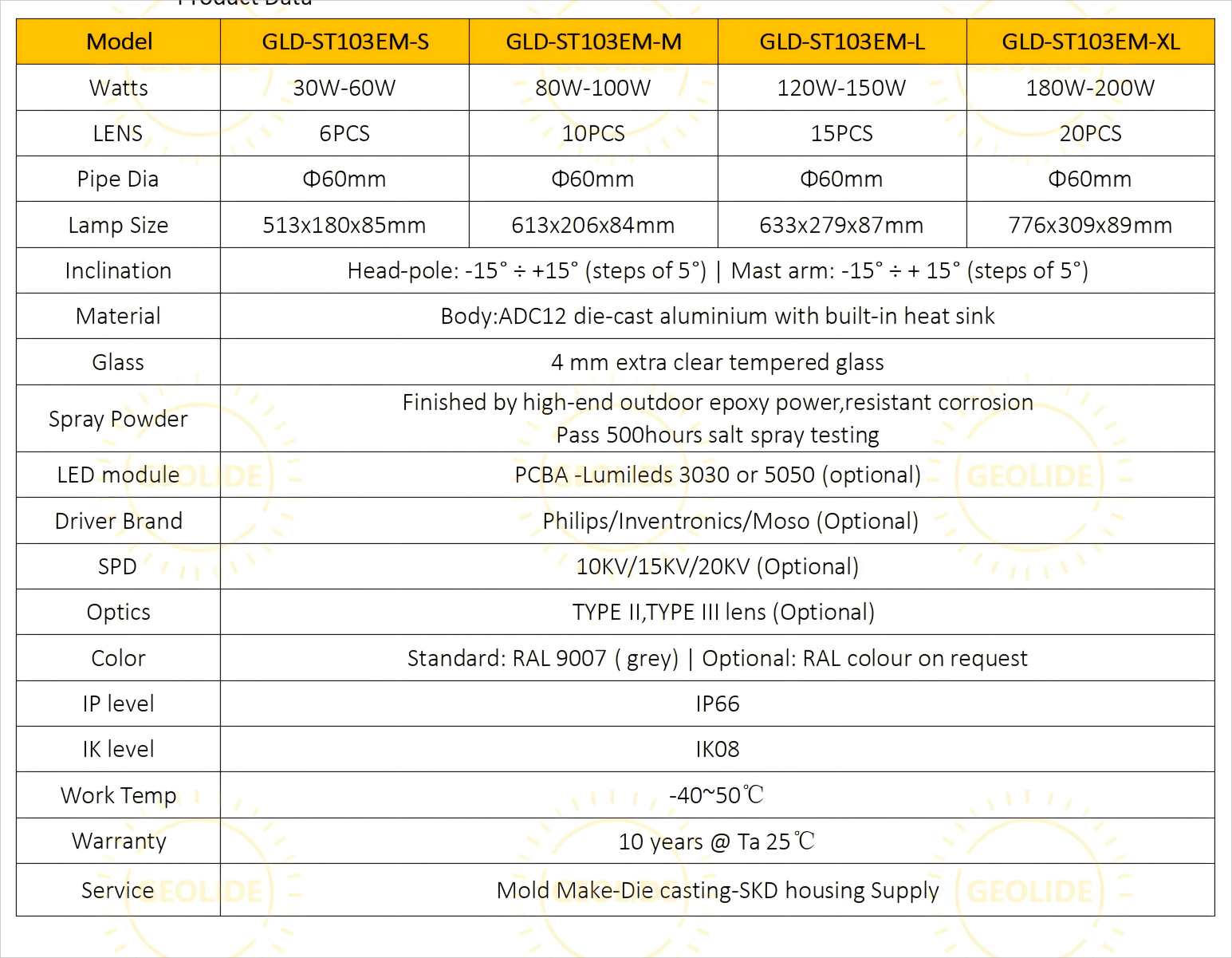

Model No. |
Power |
L*W*H (mm) |
IP Level |
IK Level |
|
GLD-ST103EM-S |
30W-60W |
513x180x85 |
IP65 |
IK08 |
|
GLD-ST103EM-M |
80W-100W |
613x206x84 |
IP65 |
IK08 |
|
GLD-ST103EM-L |
120W-150W |
633x279x87 |
IP65 |
IK08 |
|
GLD-ST103EM-XL |
180W-200W |
776x309x89 |
IP65 |
IK08 |
|
Model |
GLD-ST103EM |
|
Power |
30W/60W/80W/100W/150W/200W/240W |
|
IP level |
IP65 |
|
IK level |
IK08 |
|
Install Tube Dia |
D60mm |
|
Install ways |
+ - 15degree adjustable both Post-top or Side-Entry mounted |
|
Materials |
Housing: ADC12 die-cast aluminum |
|
Spray |
Finished by high-end outdoor epoxy power,resistant corrosion, 500hours salt spray testing certificates , no problem use on seaside road |
|
Advantage |
Top cover use large area heat-sink fin design theory, in favor of the convection between cold and hot air, to keeping the good heat dissipation of lamps finally increase the light whole time light Ventilation design theory to dust prevention & prevent stagnant water to achieve the light long-life time |
|
Color |
Grey/Black/White |
|
Accessories is optional |
PCB(w/o led), Lens |
|
Electric Parts is optional |
Sosen,Inventronics,Meanwell or Specified brand;SMD3030, SMD5050, CREE |
Ningbo Geolide Illuminate Co., Limited is a professional China Die Casting Led Street Lights Housing Manufacturers and Street lamps factory&supplier,which is found in 2010 as a stock company focus on development,production,marketing of die casting High Power 30W/50W/100W/150W/180W/300W LED street light housing,Led light housing,Led Street Light,Led Garden Light,Led Flood Light,Led High Bay Light ETC.Our company mainly manufactures middle and high-end products.
Application
This heavy-duty, modern design and cost-effective LED street light housing fixture is typically used as 30W-300W LED street lighting fixture. LED street lighting is used extensively in urban settings, along small town downtown main streets, in residential neighborhoods, in commercial districts, public squares, in industrial parks, at interstate highway interchanges, bridges, and rural intersections.
Ningbo Geolide Illuminate Co., Limited is a professional suppliers, we custom GLD-ST103EM 30W-240W ecnomical waterproof IP66 die casting Led outdoor street lights case private mold when we were found in 2010 as a stock company, we focus on development, production, marketing of die casting LED street light housing, Led light housing,Led Street Light, Led Garden Light, Led Flood Light, Led High Bay Light ETC. Our company mainly manufactures middle and high-end products.
