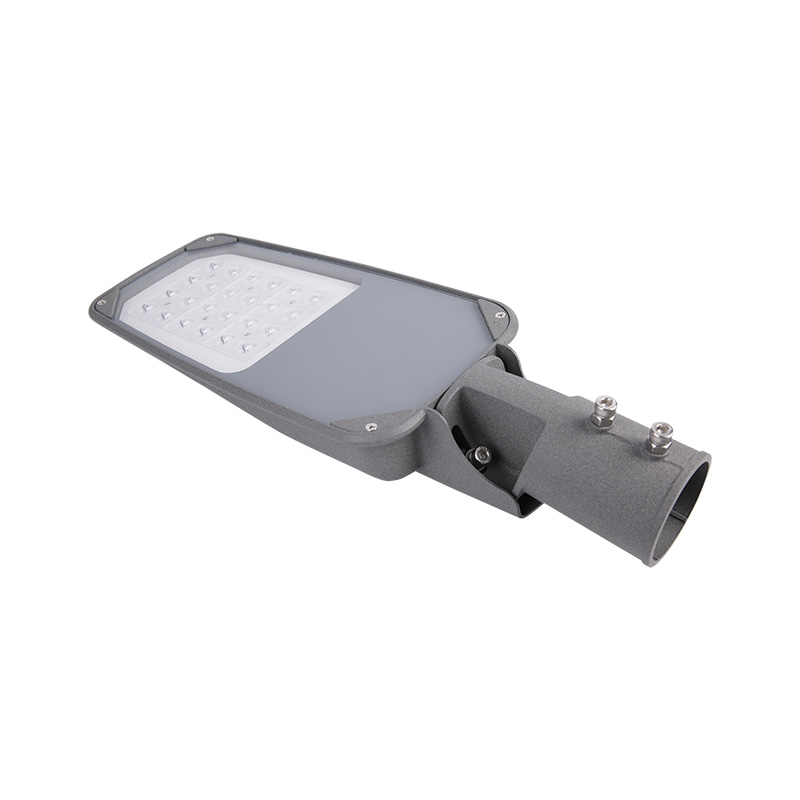

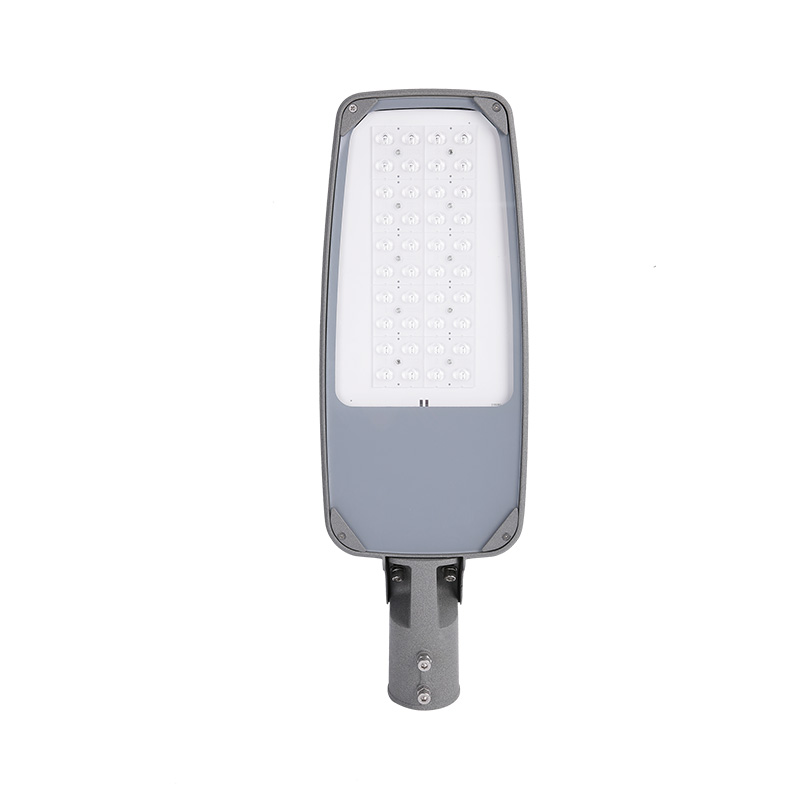

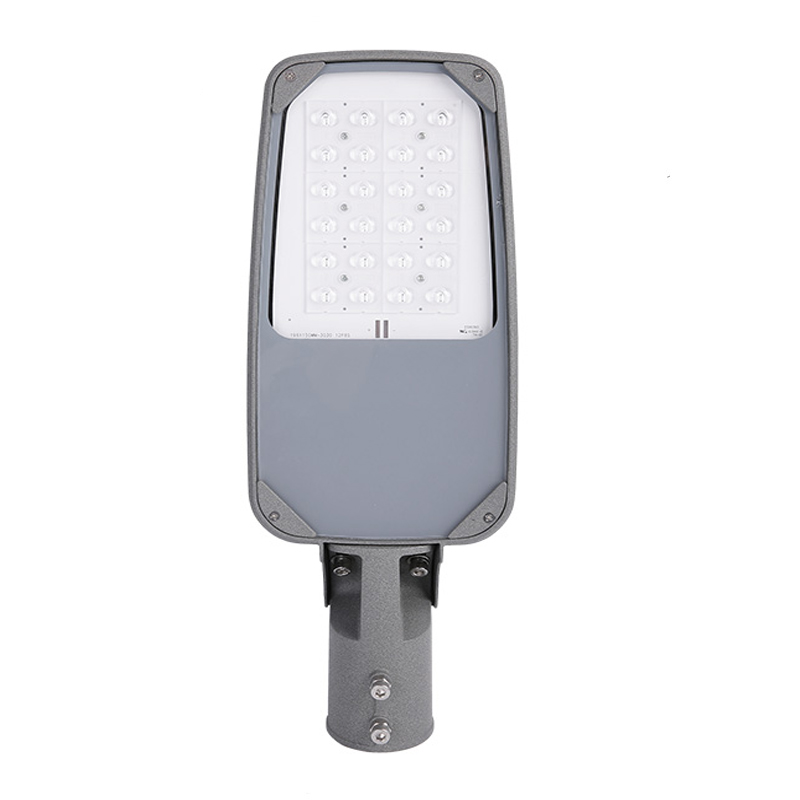

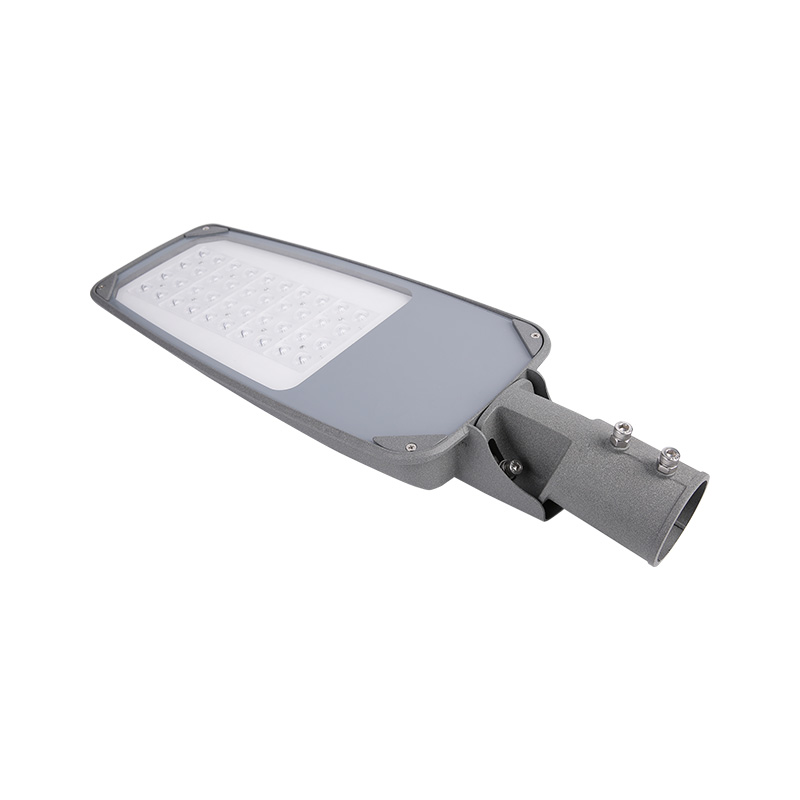

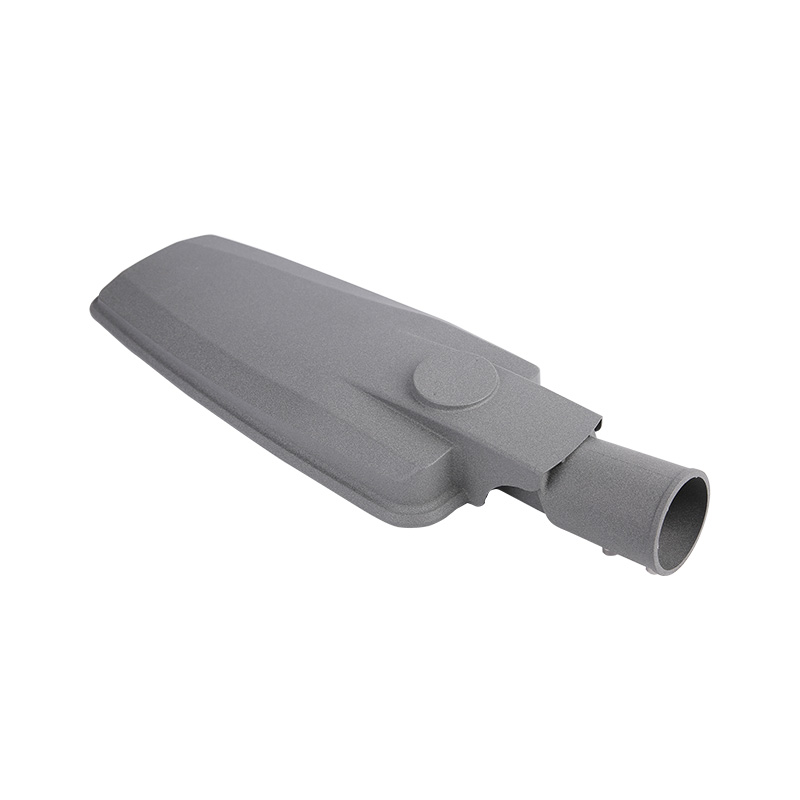

ST103EM 30W-240W ecnomical waterproof IP66 die casting Led outdoor street lights casing

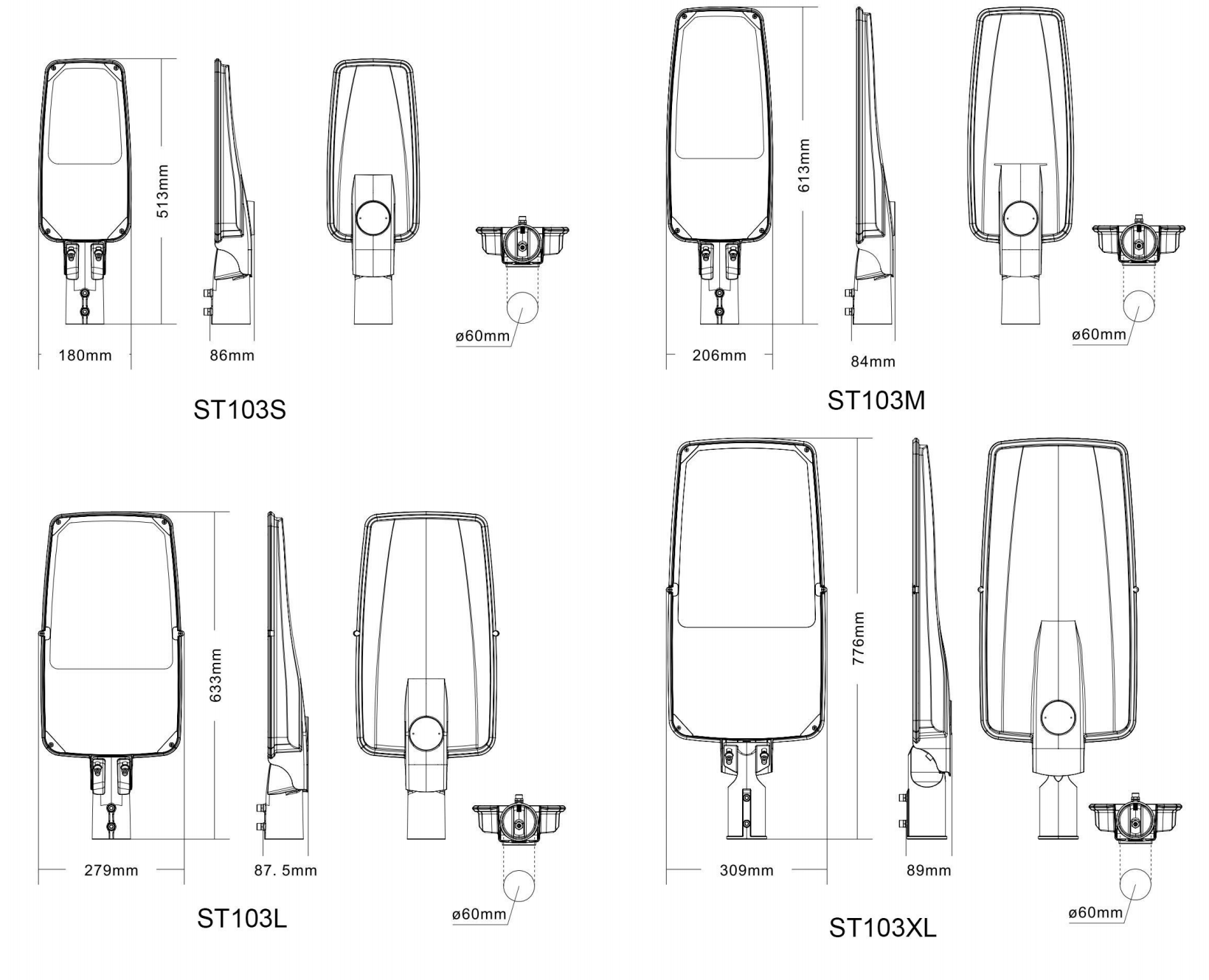

Model No.

Power

L*W*H (mm)

IP Level

IK Level

GLD-ST103EM-XS

30W-60W

513x180x85

IP65

IK08

GLD-ST103EM-S

80W-100W

613x206x84

IP65

IK08

GLD-ST103EM-M

120W-150W

633x279x87

IP65

IK08

GLD-ST103EM-L

180W-200W

776x309x89

IP65

IK08

Product Details

Model

GLD-ST103EM

Power

30W/60W/80W/100W/150W/200W/240W

IP level

IP65

IK level

IK08

Install Tube Dia

D60mm

Install ways

+ - 15degree adjustable both Post-top or Side-Entry mounted

Materials

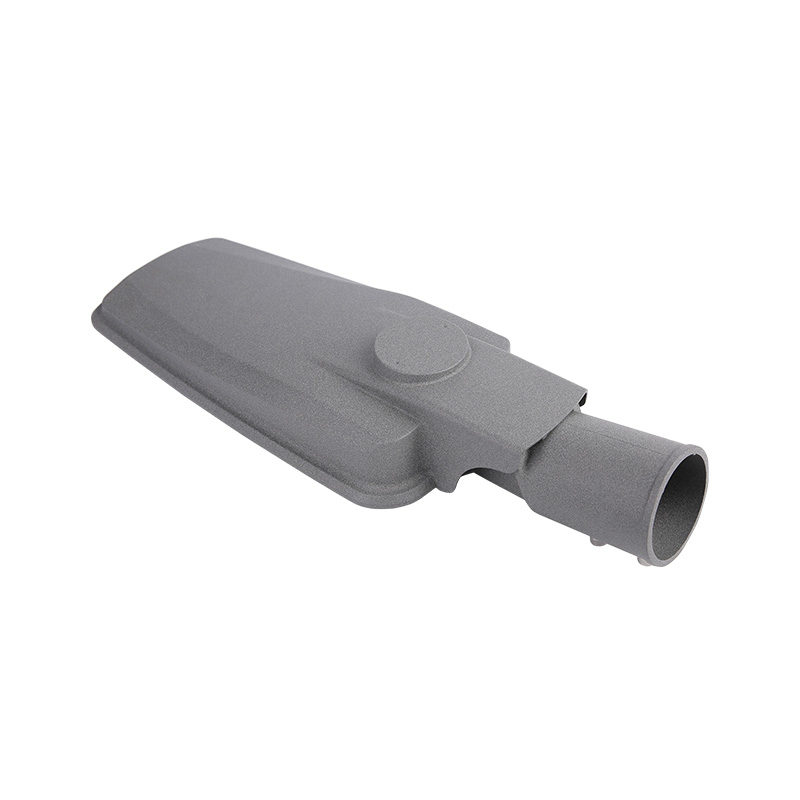

Housing: ADC12 die-cast aluminum
Cover:4MM Thick Toughened Glass                                        Quality Silicon Seal Gasket  M16 Cable Gland
Screws: 304 stainless screws

Spray

Finished by high-end outdoor epoxy power,resistant corrosion, 500hours salt spray testing certificates , no problem use on seaside road

Advantage

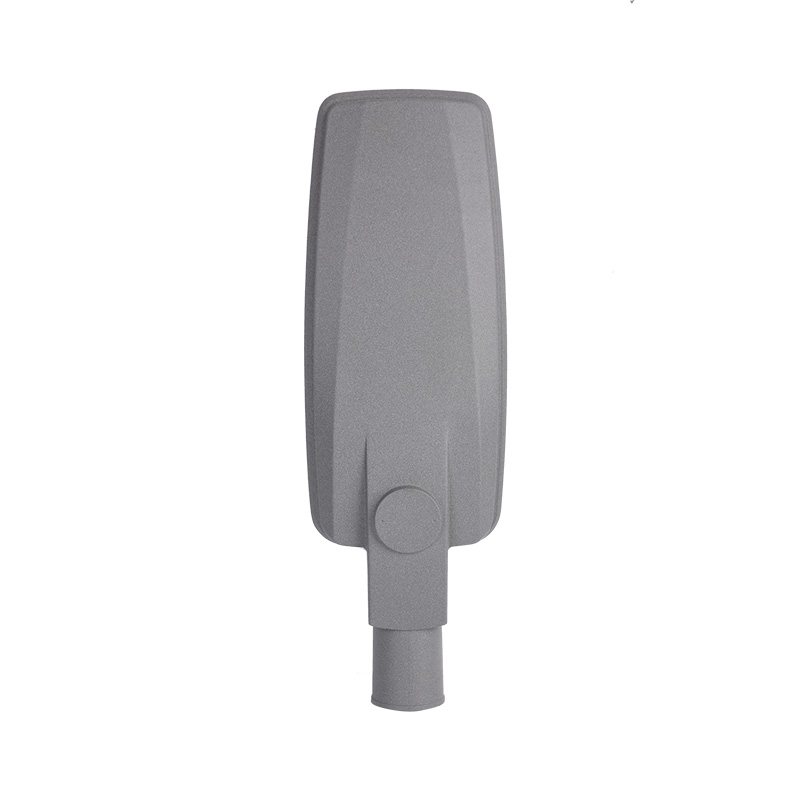

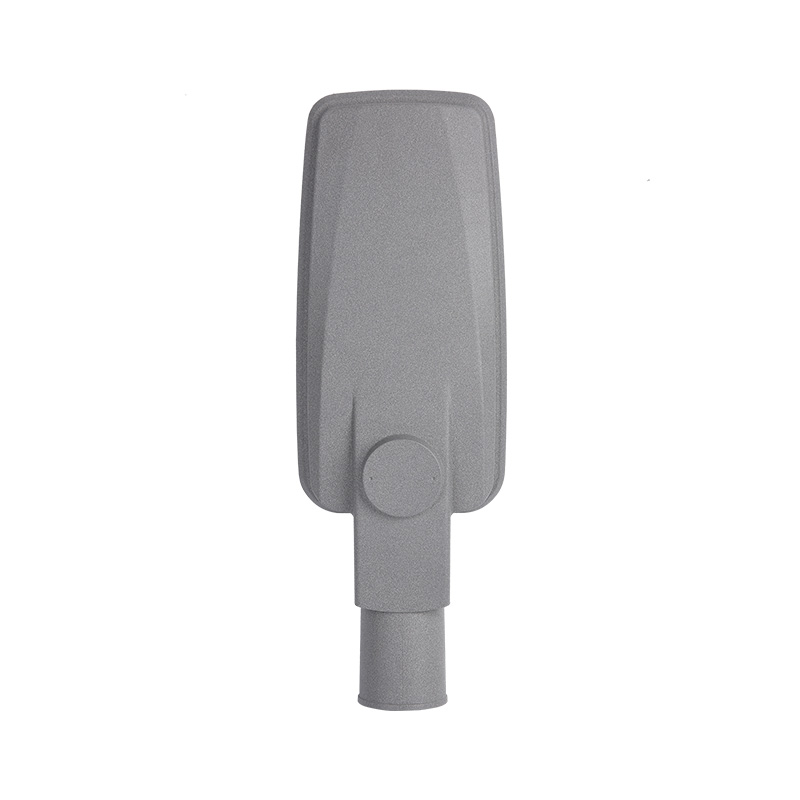

Top cover use large area heat-sink fin design theory, in favor of the convection between cold and hot air, to keeping the good heat dissipation of lamps finally increase the light whole time light  Ventilation design theory to dust prevention & prevent stagnant water to achieve the light long-life time

Color

Grey/Black/White

Accessories   is optional

PCB(w/o led), Lens

Electric Parts  is optional

Sosen,Inventronics,Meanwell or Specified brand;SMD3030, SMD5050, CREE

Ningbo Geolide Illuminate Co., Limited is a professional China Die Casting Led Street Lights Housing Manufacturers and Street lamps factory&supplier,which is found in 2010 as a stock company focus on development,production,marketing of die casting High Power 30W/50W/100W/150W/180W/300W LED street light housing,Led light housing,Led Street Light,Led Garden Light,Led Flood Light,Led High Bay Light ETC.Our company mainly manufactures middle and high-end products.

Application


This heavy-duty, modern design and cost-effective LED street light housing fixture is typically used as 30W-300W LED street lighting fixture. LED street lighting is used extensively in urban settings, along small town downtown main streets, in residential neighborhoods, in commercial districts, public squares, in industrial parks, at interstate highway interchanges, bridges, and rural intersections.
