Model No. |
Power |

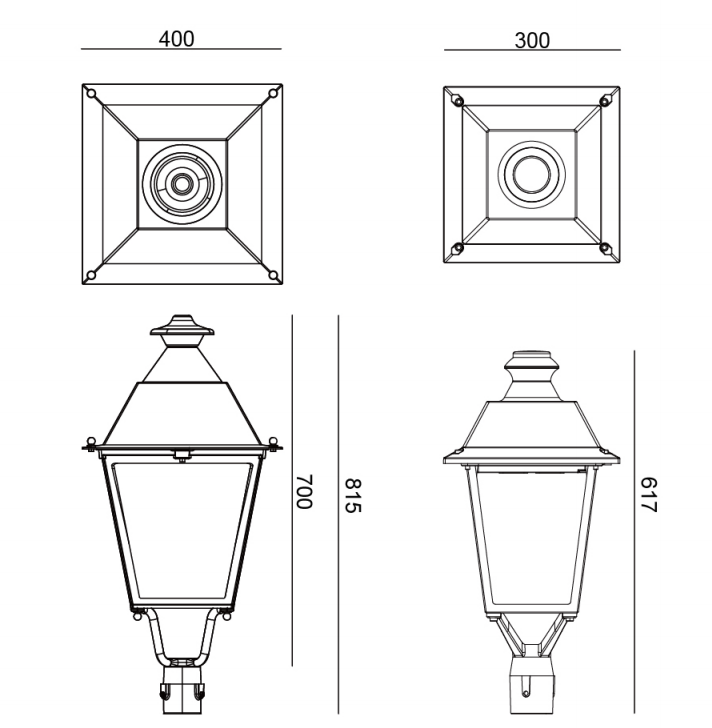

L*W*H(mm) |
IP Level |
Protection Level |
|
GLD-GL106-40W |
40W |
410x410x640 |
IP66 |
IK09 |
|
GLD-GL106-60W |
60W |
410x410x640 |
IP66 |
IK09 |
|
GLD-GL106-80W |
80W |
410x410x640 |
IP66 |
IK09 |
|
GLD-GL106-100W |
100W |
410x410x640 |
IP66 |
IK09 |
|

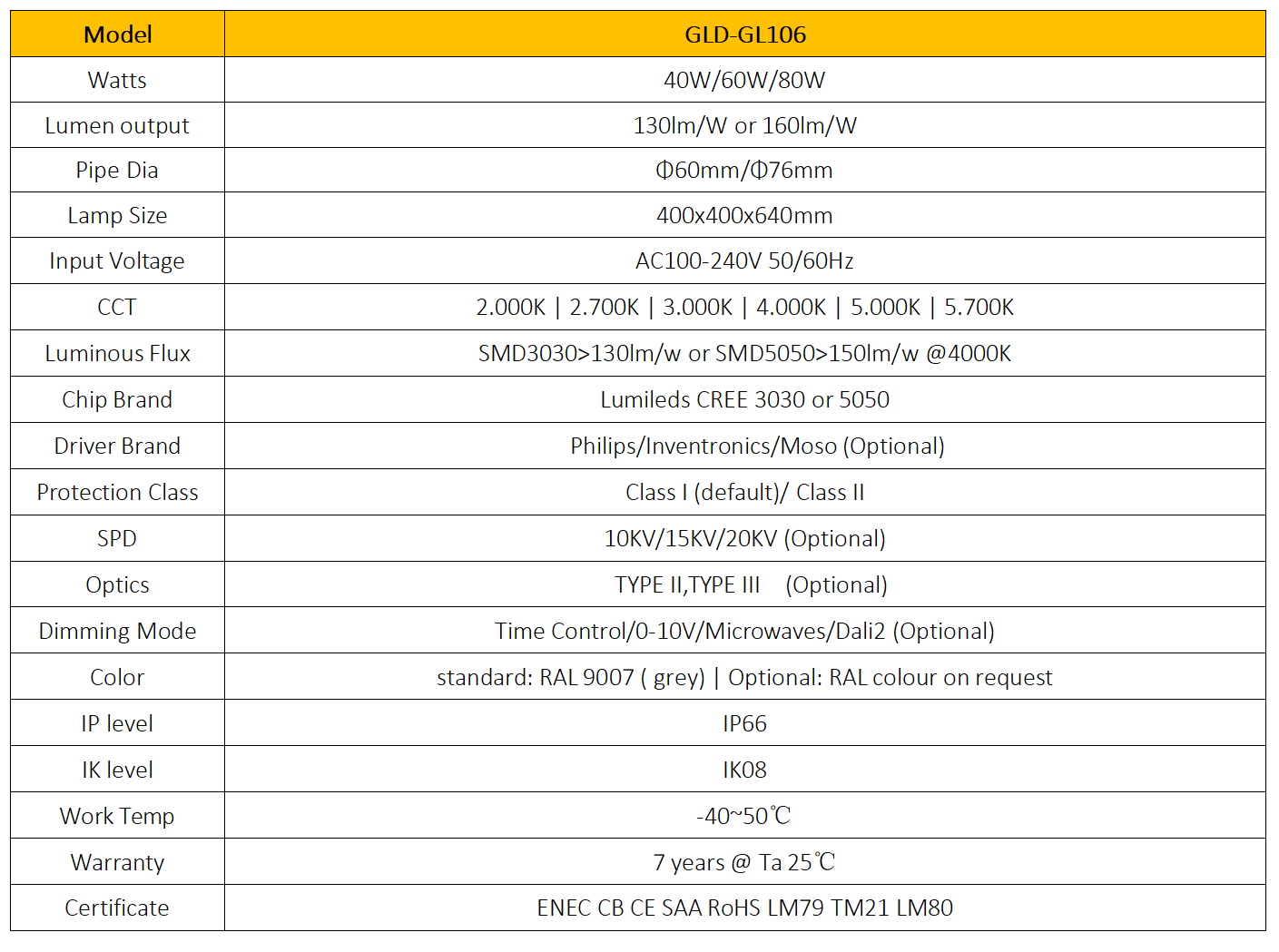

Model |
GLD-GL106 |
|
Light Source |
Integral LED Module |
|
Power |
40W/60W/80W/100W |
|
Led Chips |
SMD3030 48pcs/72pcs/96pcs/108pcs/144pcs |
|
Install tube Dia |
D60 D76 |
|
Luminaire Efficacy |
120-150lm/W |
|
CCT |
4000K (3000K/5000K/5700K upon request) |
|
CRI |
> 70/ > 80 (upon request) |
|
Voltage |
AC100-240V |
|
Lifetime |
100,000 hours at 25℃ ambient temperature |
|
Beam angle |
TYPE Ⅱ、Ⅲ |
|
Driver |
Philips、SOSEN、INVENR、Geolide |
|
Options |
Photocell |
|
Materials |
Housing: ADC12 die-cast aluminum |
|
Spray |
Finished by high-end outdoor epoxy power,resistant corrosion |
|
Color |
Grey/Black/White |
|
Tightness Level |
IP66 |
|
Impact Resistance |
IK09 |
|
Standards & Certifications |
CE/ENEC/CB/GS/IEC/ROHS/LM80/TM21 |
Ningbo Geolide Illuminate Co., Limited is a professional China LED Street Lights Manufacturers and Street Light factory&supplier,which is found in 2010 as a stock company focus on development,production,marketing of die casting LED street light housing,Led light housing,Led Street Light,Led Garden Light,Led Flood Light,Led High Bay Light ETC.Our company mainly manufactures middle and high-end products.
We have a very experienced LED R&D team, with more knowledgeable engineers, helping our customers customize products,making thermal simulation, defining light distribution, and supplying OEM die-casting, as well as CKD/SKD.
