Model No. |
Power |

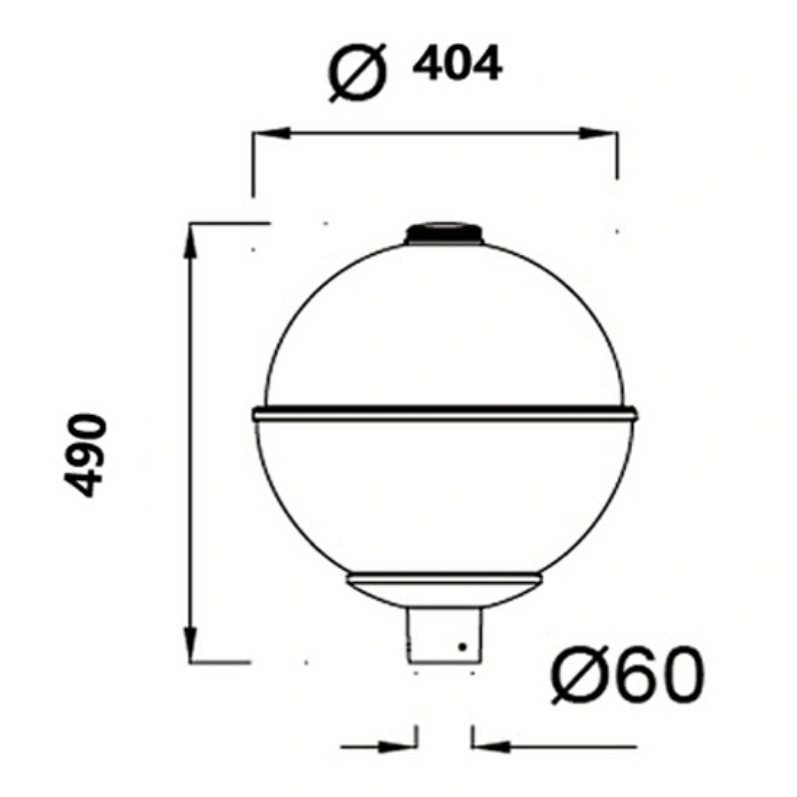

L*W*H(mm) |
IP Level |
Protection Level |
|
GLD-GL102 |
20W 30W 40W 50W |
410x410x510 |
IP66 |
IK08 |
|

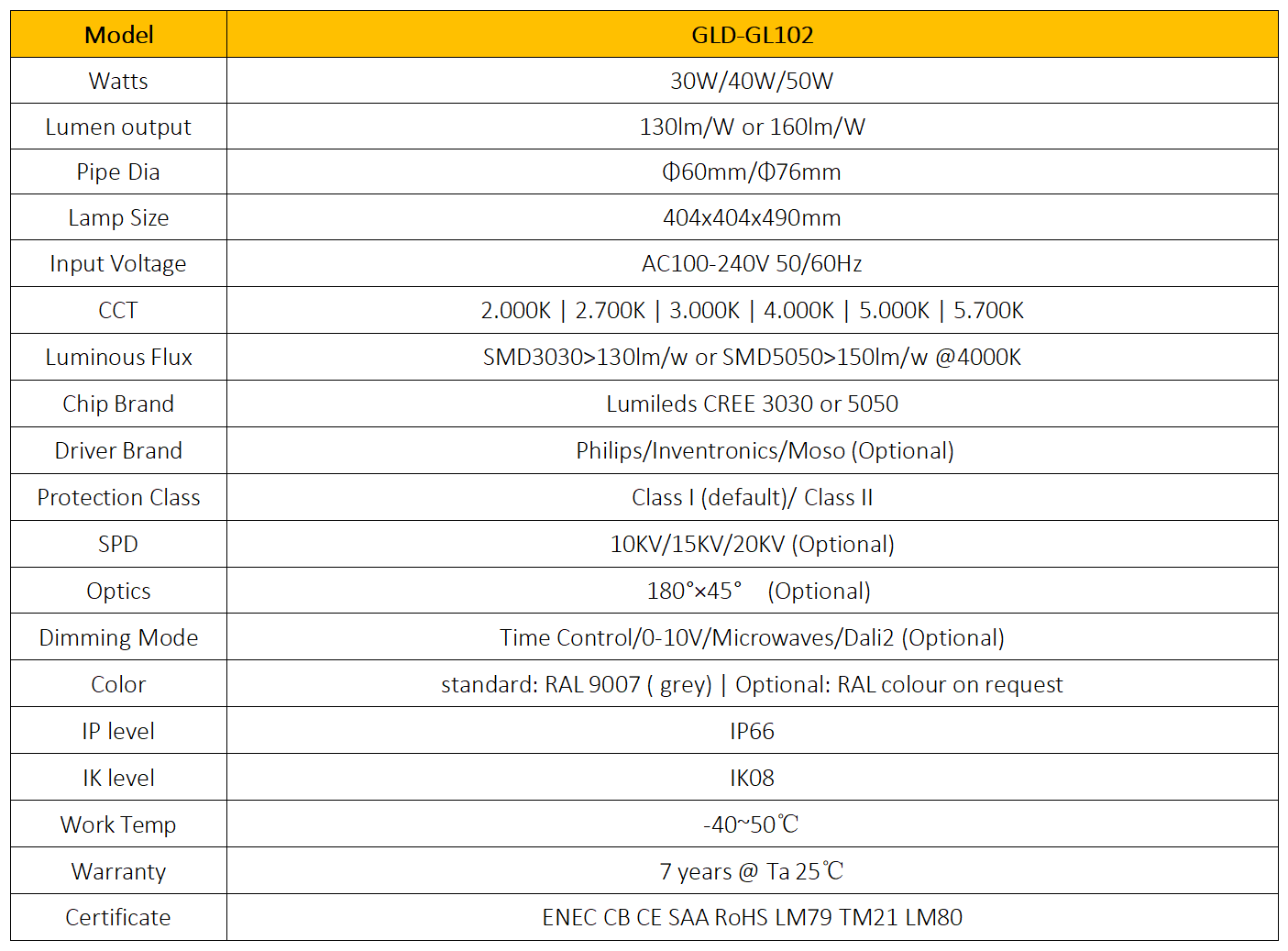

Model |
GLD-GL102 |
|
Light Source |
Integral LED Module |
|
Power |
20W/30W/40W/50W |
|
Led Chips |
SMD3030 |
|
Install tube Dia |
D60/D76MM |
|
Luminaire Efficacy |
110-150lm/W |
|
CCT |
4000K (3000K/5000K/5700K upon request) |
|
CRI |
> 70/ > 80 (upon request) |
|
Voltage |
AC100-240V |
|
Lifetime |
100,000 hours at 25℃ ambient temperature |
|
Beam angle |
180°×45° |
|
Driver |
Philips、SOSEN、INVENR、Geolide |
|
Options |
Photocell |
|
Materials |
Housing: ADC12 die-cast aluminu |
|
Spray |
Finished with high-end outdoor epoxy power, resistant corrosion |
|
Color |
Grey/Black/White |
|
Tightness Level |
IP66 |
|
Impact Resistance |
IK08 |
|
Standards & Certifications |
CE/ENEC/CB/GS/IEC/ROHS/LM80/TM21 |
