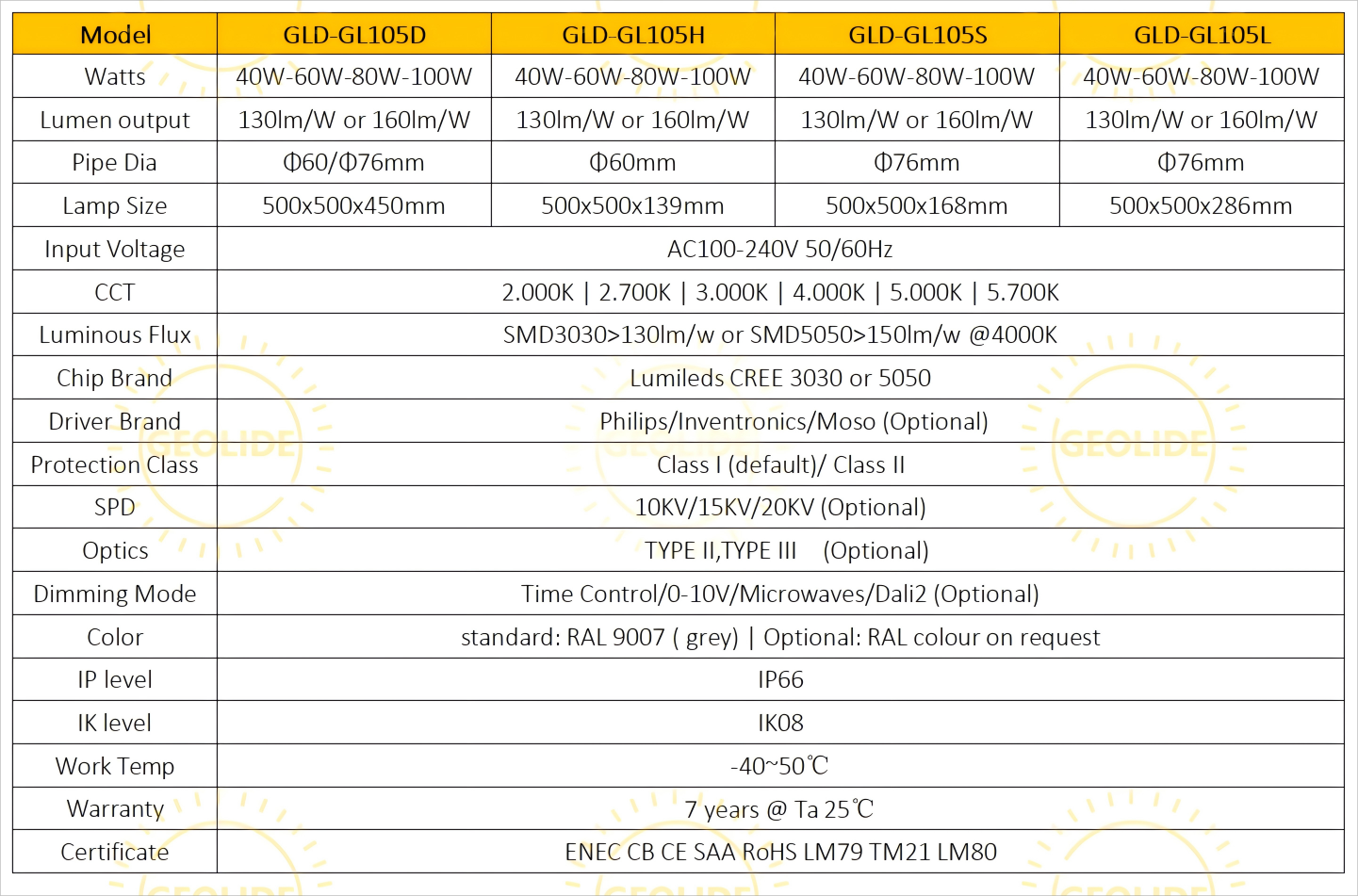

Model No. |
Power |
L*W*H(mm) |
IP Level |
Protection Level |
|
GLD-GL105-D |
40W-120W |
500x500x450 |
IP66 |
IK09 |
|
GLD-GL105-H |
40W-120W |
500x500x450 |
IP66 |
IK09 |
|
GLD-GL105-S |
40W-120W |
500x500x450 |
IP66 |
IK09 |
|
GLD-GL105-L |
40W-120W |
500x500x450 |
IP66 |
IK09 |
|
Model |
GLD-GL105 |
|
Light Source |
Integral LED Module |
|
Power |
40W/60W/80W/100W/120W |
|
Led Chips |
SMD3030 96pcs/108pcs/144pcs |
|
Install tube Dia |
D50/D60MM |
|
Luminaire Efficacy |
110-150lm/W |
|
CCT |
4000K (3000K/5000K/5700K upon request) |
|
CRI |
> 70/ > 80 (upon request) |
|
Voltage |
AC100-240V |
|
Lifetime |
100,000 hours at 25℃ ambient temperature |
|
Beam angle |
TYPE Ⅱ、Ⅲ |
|
Driver |
Philips、SOSEN、INVENR、Geolide |
|
Options |
Photocell |
|
Materials |
Housing: ADC12 die-cast aluminum |
|
Spray |
Finished by high-end outdoor epoxy power,resistant corrosion |
|
Color |
Grey/Black/White |
|
Tightness Level |
IP66 |
|
Impact Resistance |
IK09 |
|
Standards & Certifications |
CE/ENEC/CB/GS/IEC/ROHS/LM80/TM21 |
Ningbo Geolide Illuminate Co., Limited is a professional China Die Casting Led Street Lights Housing Manufacturers and Street lamps factory&supplier,which is found in 2010 as a stock company focus on development,production,marketing of die casting High Power 30W/50W/100W/150W/180W/300W LED street light housing,Led light housing,Led Street Light,Led Garden Light,Led Flood Light,Led High Bay Light ETC.Our company mainly manufactures middle and high-end products.
Application
This heavy-duty, modern design and cost-effective LED street light housing fixture is typically used as 30W-300W LED street lighting fixture. LED street lighting is used extensively in urban settings, along small town downtown main streets, in residential neighborhoods, in commercial districts, public squares, in industrial parks, at interstate highway interchanges, bridges, and rural intersections.
Ningbo Geolide Illuminate Co., Limited is a professional suppliers, we custom GLD-GL105 40W-100W high quality IP66 IK09 Led Urban Light led post top light supplier Private mold high cost performance when we were found in 2010 as a stock company, we focus on development, production, marketing of die casting LED street light housing, Led light housing,Led Street Light, Led Garden Light, Led Flood Light, Led High Bay Light ETC. Our company mainly manufactures middle and high-end products.
