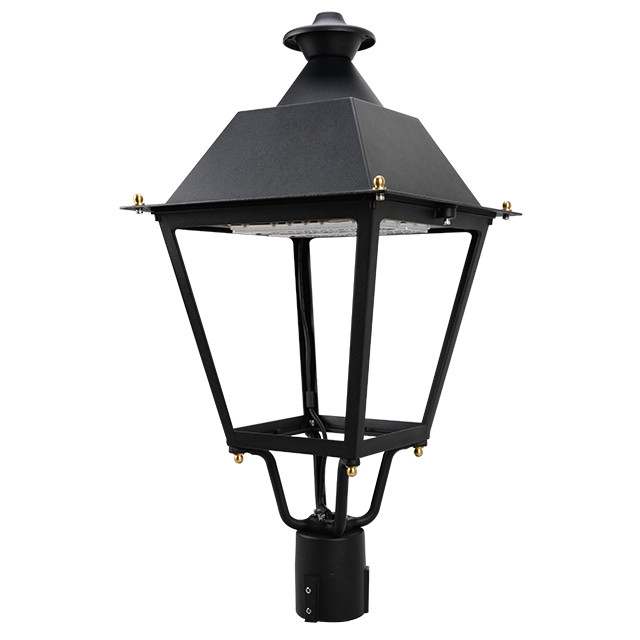

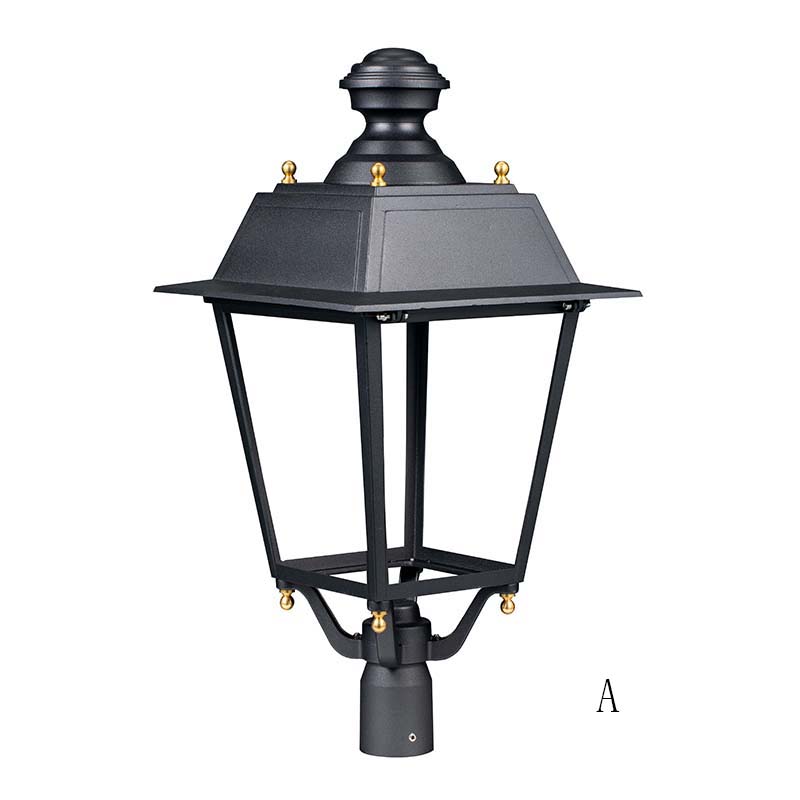

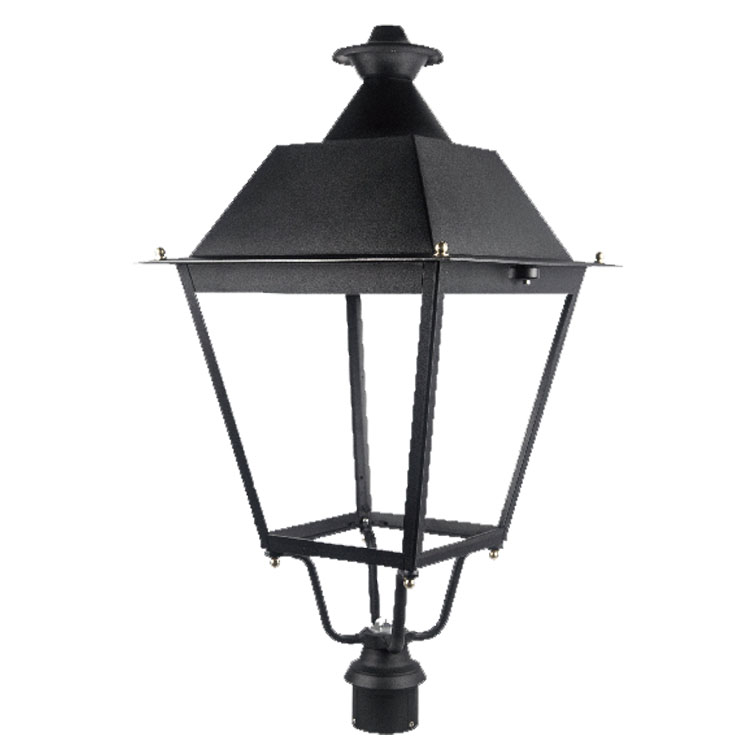

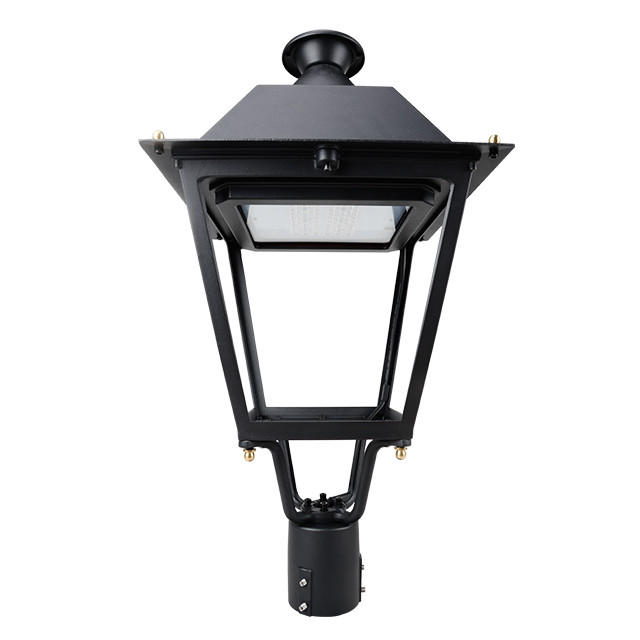

GL106EM 40W-100W high quality IP66 IK09 Led Urban Light led post top light housing

Model No.

Power

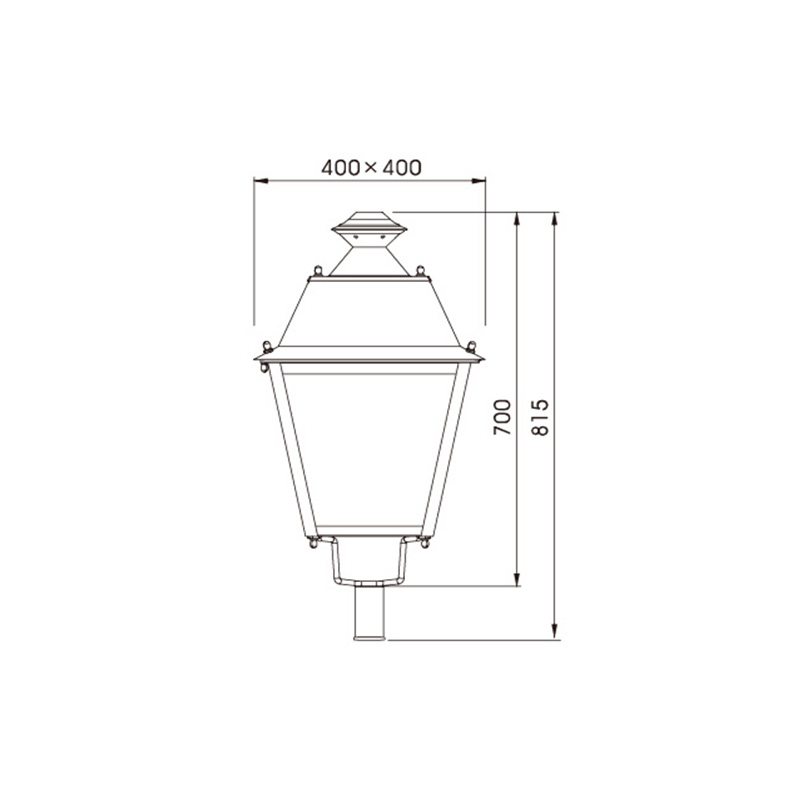

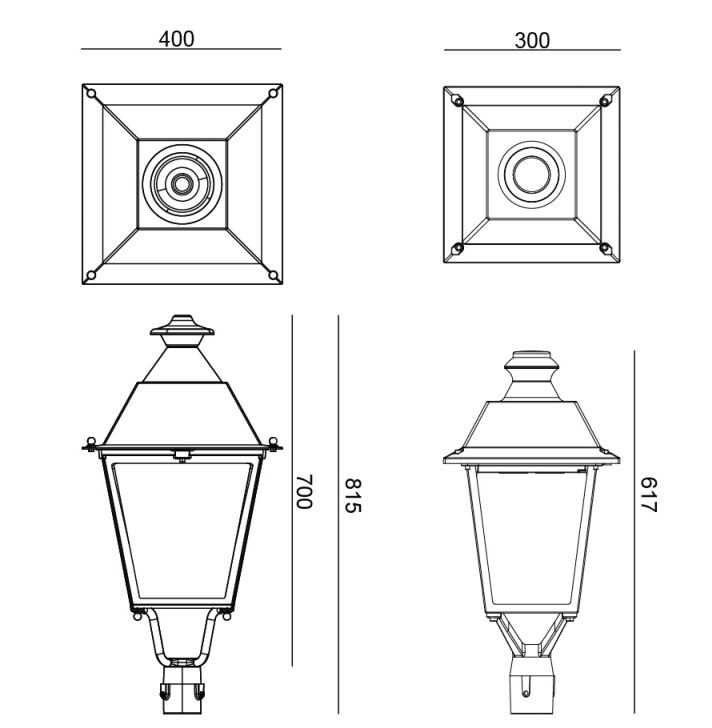

L*W*H(mm)

IP Level

Protection Level

GLD-GL106EM

40W-100W

400x400x914

IP66

IK09

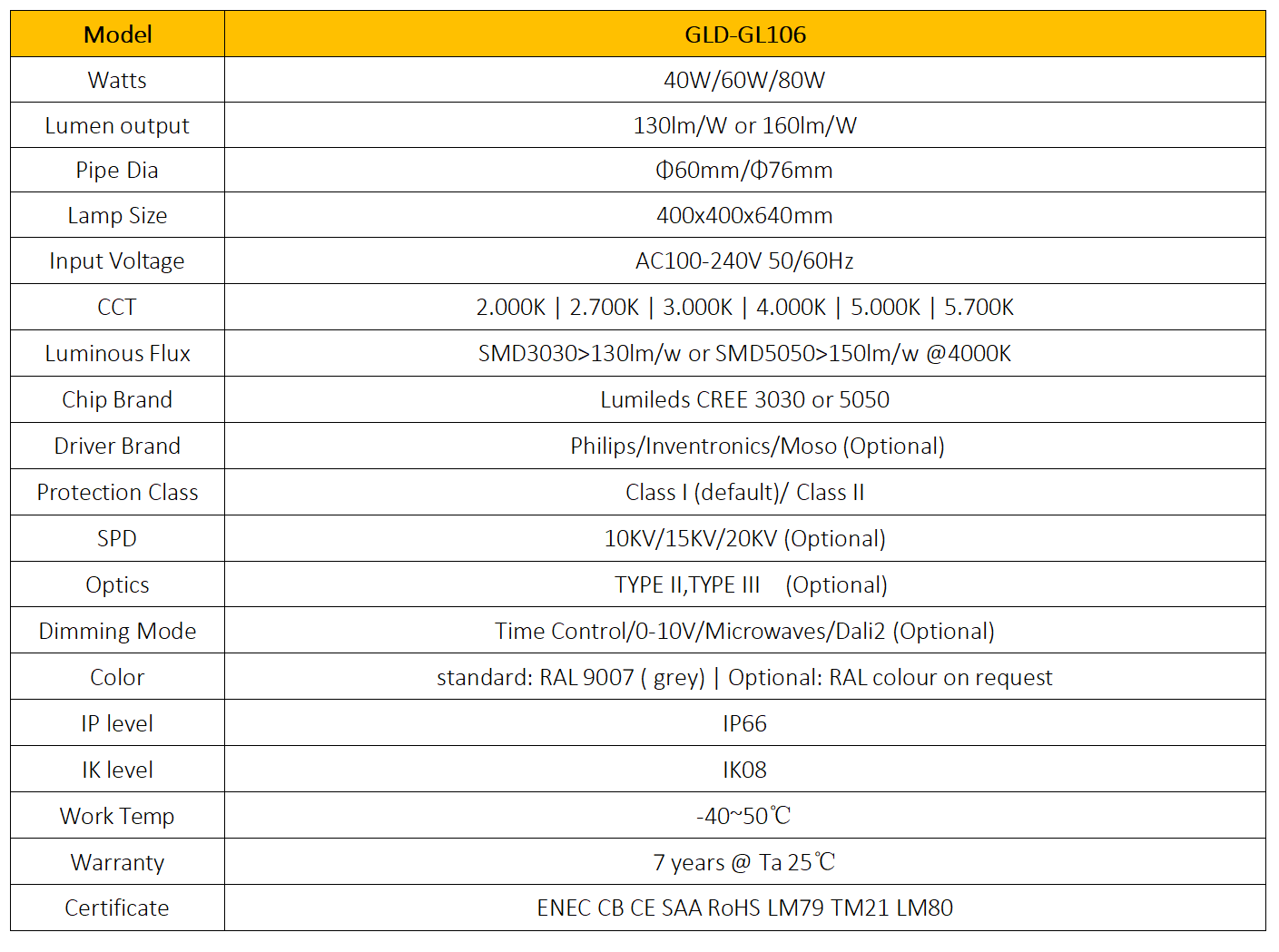

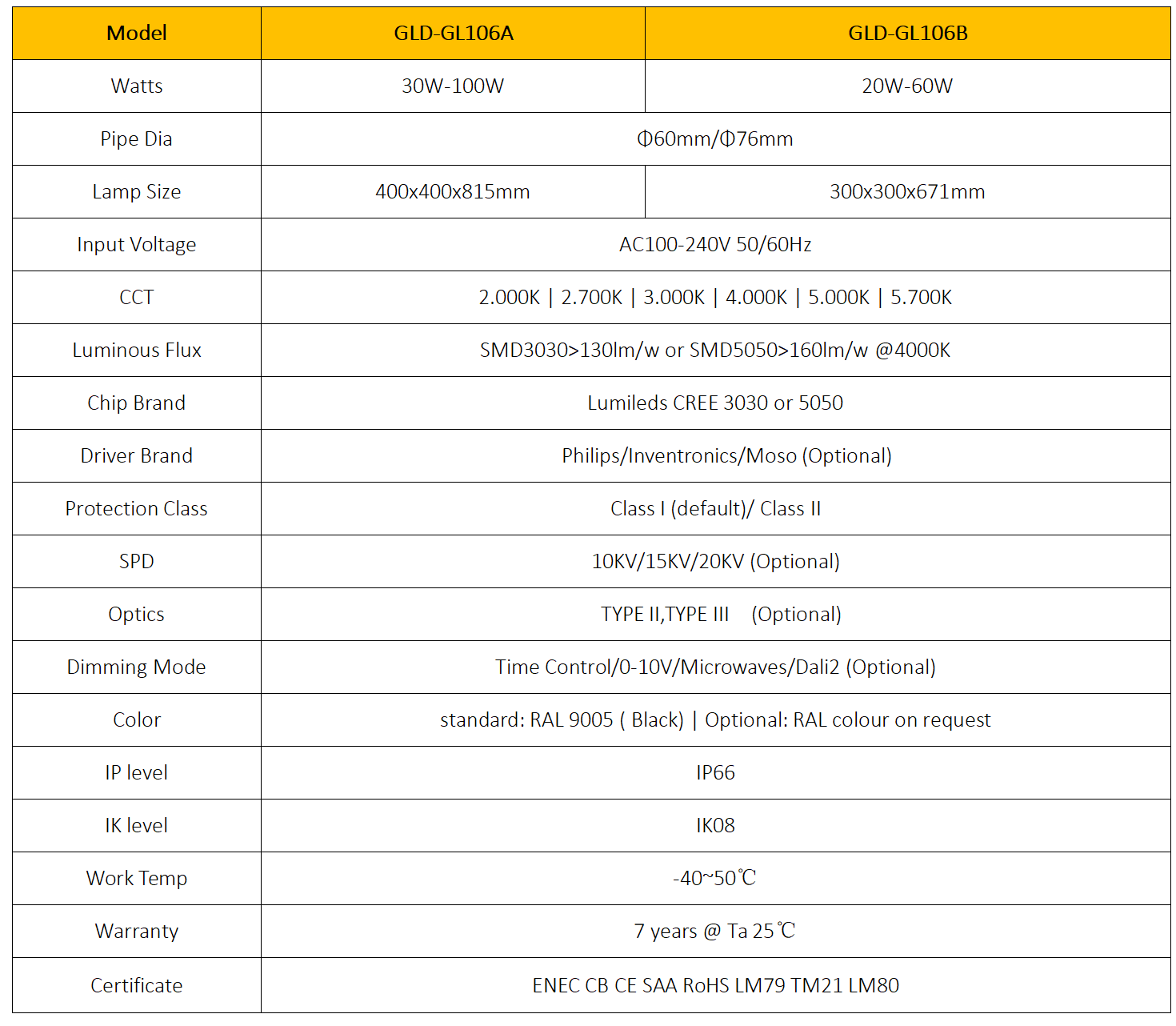

Product Details

Model

GLD-GL105EM

Power

40W/60W/80W/100W

IP level

IP66

IK level

IK09

Install Tube Dia

D60/D76mm

Materials

Housing: ADC12 die-cast aluminum
Cover:4MM Thick Toughened Glass

Quality Silicon Seal Gasket  M16 Cable Gland
Screws: 304 stainless screws

Spray

Finished by high-end outdoor epoxy power,resistant corrosion, 500hours salt spray testing certificates , no problem use on seaside road

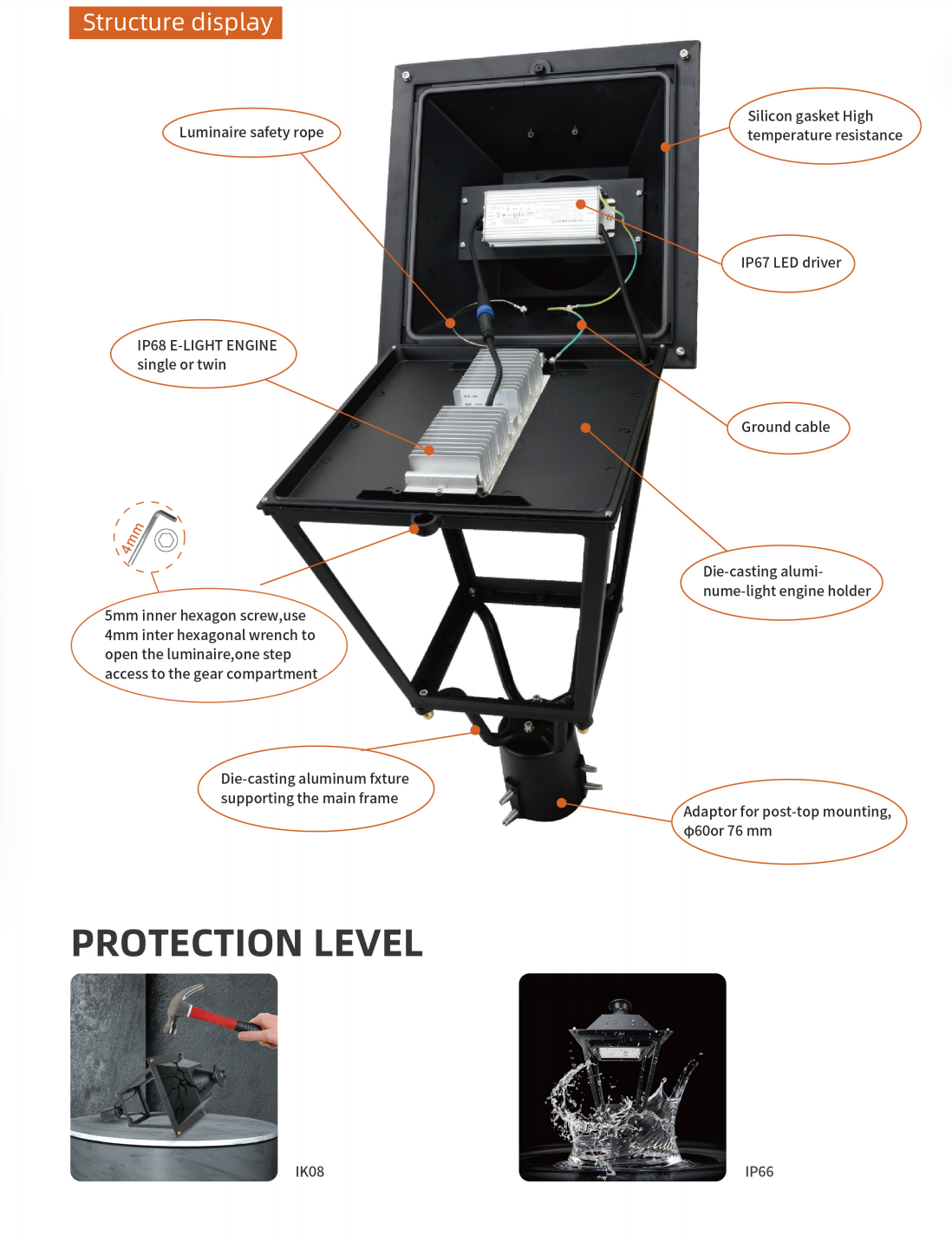

Advantage

Top cover use large area heat-sink fin design theory, in favor of the convection between cold and hot air, to keeping the good heat dissipation of lamps finally increase the light whole time light  Ventilation design theory to dust prevention & prevent stagnant water to achieve the light long-life time

Color

Grey/Black/White

Accessories     is optional

PCB(w/o led), Lens

Electric Parts    is optional

Sosen,Inventronics,Meanwell or Specified brand;SMD3030, SMD5050, CREE
