Model No. |
Power |
L*W*H(mm) |
IP Level |
IK Level |
|

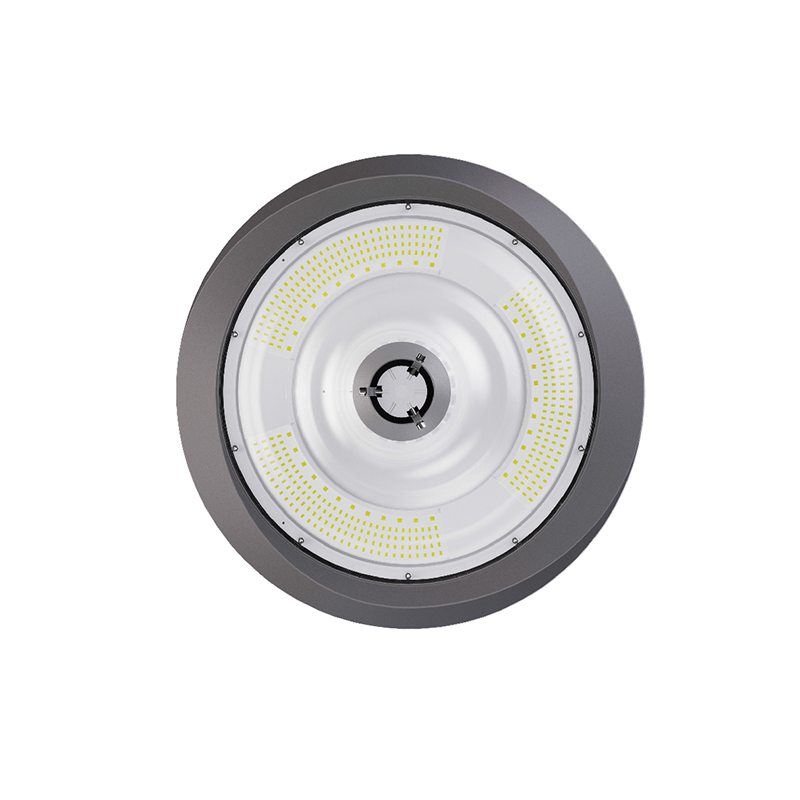

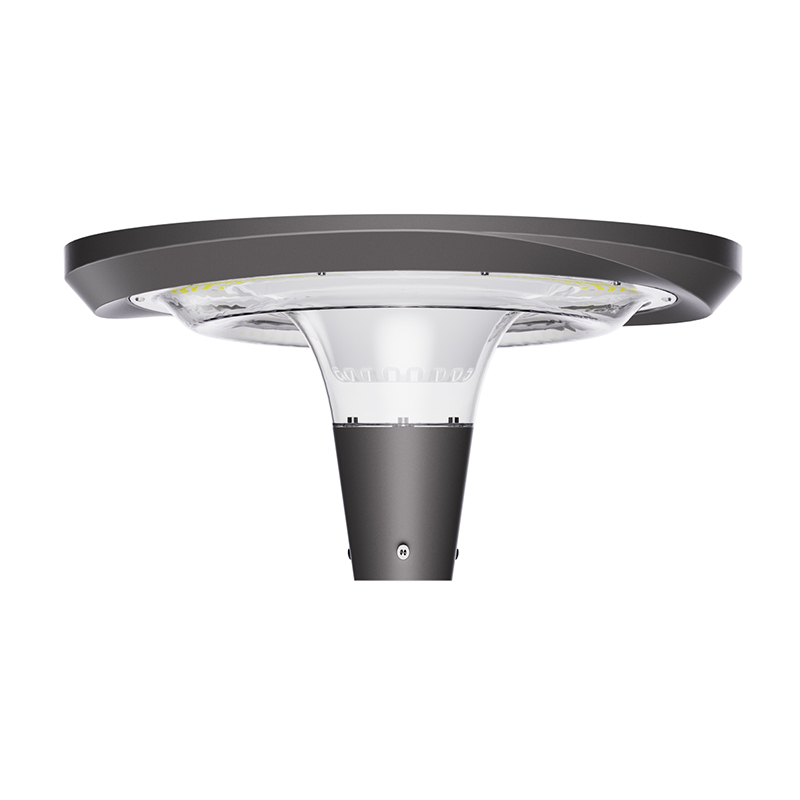

GLD-SGL001 |
12W/15W/18W |
Φ576x240 |
IP66 |
IK08 |
| Lighting Performance | |
| Item number | GLD-SGL001 |
| Luminous flux | 2,800lm max |
| Peak LED power | 15W |
| CRI | >80 |
| LED type | SMD3030 |
| CCT range | Dual color 3000K+4000K / 3000K+6000K |
| LED Lifetime | >100,000 hours |
| LifePo4 Battery | |
| Battery type | Brand new LifeP04 32700 6000mA 3.2V |
| Battery capacity | 3.2V / 48AH |
| Battery lifetime | 6000 cycles @ D.O.D 80% |
| Charge Time | 4 hours |
| Discharge time | >24 hours |
| Working temp. | -15°C 〜70oC |
| Battery autonomy | 2- 3 days, 3〜5 days in motion detection mode |
| Solar Panel | |
| Peak Power | 40W |
| Rated Voltage | 4V |
| Cell Type | MONO crystalline silicon |
| Cell Efficiency (%) | >22.5% |
| Control System | |
| Control method | Automatic dusk to dawn |
| Solar charge controller | MPPT controller |
| Charging efficiency | >97% |
| Remote type | 2.4G radio |
| Operation distance | <30 meters |
| Sensor type | PIR motion sensor |
| Grouping function | Yes |
| CCT changeable | Yes |
| LED power changeable | Yes |
| Time changeable | Yes |
| Working mode changeabLe | Yes |
| Fixture & Packing | |
| Light dimension | ∅576*H240mm |
| Materials | Aluminum die casting + Tempered Glass |
| IP & IK Rate | IP65 IK08 |
| Fixture color | Black RAL9011 / Anthracite grey RAL 7016 |
| Pole diameter to fit | 76mm |
| Package size | /cm |
| N.W/Light | /KG |
| G.W/Light | /KG |
| Certificates | / |
| Warranty | 5 years |
Ningbo Geolide Illuminate Co., Limited is a professional suppliers, we custom SGL001 China Wholesale15W Integrated Solar LED urban light & garden light manufacturers with good price when we were found in 2010 as a stock company, we focus on development, production, marketing of die casting LED street light housing, Led light housing,Led Street Light, Led Garden Light, Led Flood Light, Led High Bay Light ETC. Our company mainly manufactures middle and high-end products.
