Model No. |
Power |
Size(mm) |
IP |
Work Voltage |
|
GLD-FL106S-1P |
300W |
332x499x179 |
IP66 |
AC100-240V |
|
GLD-FL106S-2P |
600W |
520x558x179 |
IP66 |
AC100-240V |
|
GLD-FL106S-3P |
900W |
768x558x179 |
IP66 |
AC100-240V |
|
Model |
GLD-FL106S-1P |
GLD-FL106S-2P |
GLD-FL106S-3P |
|
Watts |
300W |
600W |
900W |
|
LENS |
21PCS |
42PCS |
63PCS |
|
Size:L*W*H |
332x499x179mm |
520x558x179mm |
768x558x179mm |
|
Model |
GLD-FL106M-1P |
GLD-FL106M-2 |
GLD-FL106M-3P |
|
Watts |
400-500W |
800-1000W |
1200-1500W |
|
LENS |
30PCS |
60CS |
90PCS |
|
Size:L*W*H |
332x664x179mm |
520x723x179mm |
768x723x179mm |
|
Model |
GLD-FL106L-1P |
GLD-FL106L-2 |
GLD-FL106L-3P |
|
Watts |
600W |
1200W |
1800W |
|
LENS |
48PCS |
96CS |
144PCS |
|

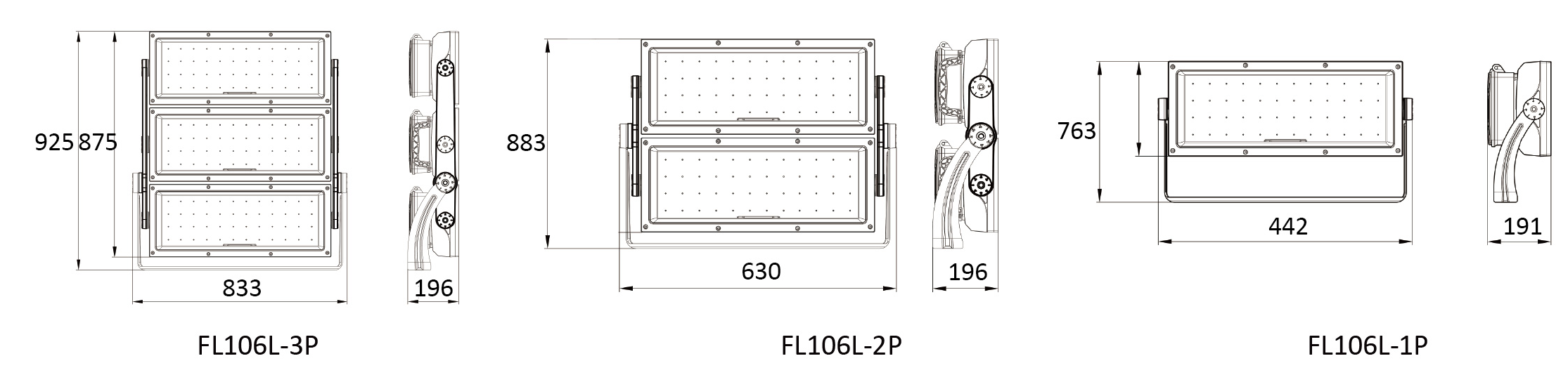

Size:L*W*H |
442x763x191mm |
630x883x196mm |
925x883x196mm |
|
Input Voltage |
AC100-240V 50/60Hz |
||
|
CCT |
2.000K | 2.700K | 3.000K | 4.000K | 5.000K | 5.700K |
||
|
Luminous Flux |
SMD3030>110lm/w or SMD5050>130lm/w @4000K |
||
|
Chip Brand |
Lumileds CREE 3030 or 5050 |
||
|
Driver Brand |
Philips/Inventronics/Moso/Sosen/Done(Optional) |
||
|
Protection Class |
Class I (default)/ Class II |
||
|
SPD |
10KV/15KV/20KV (Optional) |
||
|
Optics |
30°|60°|90°|120°|TYPE II,TYPE III (Optional) |
||
|
Dimming Mode |
Time Control/0-10V/Microwaves/Dali2 (Optional) |
||
|
Color |
Standard: RAL 9005 | Optional: RAL colour on request |
||
|
IP level |
IP66 |
||
|
IK level |
IK09 |
||
|
Work Temp |
-40~50℃ |
||
|
Warranty |
7 years @ Ta 25℃ |
||
|
Certificate |
ENEC CB CE SAA RoHS LM79 TM21 LM80 |
||
Ningbo Geolide Illuminate Co., Limited is a professional China Die Casting Led Street Lights Housing Manufacturers and Street lamps factory&supplier,which is found in 2010 as a stock company focus on development,production,marketing of die casting High Power 30W/50W/100W/150W/180W/300W LED street light housing,Led light housing,Led Street Light,Led Garden Light,Led Flood Light,Led High Bay Light ETC.Our company mainly manufactures middle and high-end products.
Application
This heavy-duty, modern design and cost-effective LED street light housing fixture is typically used as 30W-300W LED street lighting fixture. LED street lighting is used extensively in urban settings, along small town downtown main streets, in residential neighborhoods, in commercial districts, public squares, in industrial parks, at interstate highway interchanges, bridges, and rural intersections.
Ningbo Geolide Illuminate Co., Limited is a professional suppliers, we custom GLD-FL106 LED Project light Manufacturer | 500W-1500W High Power Source | IP66 IK09 Factory Direct Supply for Industrial Projects when we were found in 2010 as a stock company, we focus on development, production, marketing of die casting LED street light housing, Led light housing,Led Street Light, Led Garden Light, Led Flood Light, Led High Bay Light ETC. Our company mainly manufactures middle and high-end products.
