Model No. |
Power |

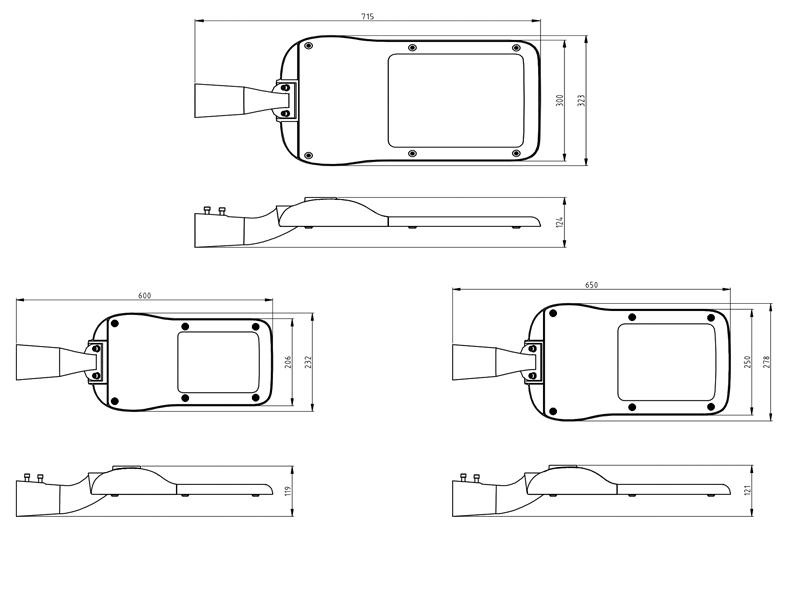

L*W*H(mm) |
IP Level |
Protection Level |
|
GLD-ST104EM-S |
30W-100W |
600x232x119 |
IP66 |
IK08 |
|
GLD-ST104EM-M |
100W-150W |
650x278x121 |
IP66 |
IK08 |
|
GLD-ST104EM-L |
150W-240W |
715x291x124 |
IP66 |
IK08 |
|
*Professional high-Quality Led Street Light housing supply, PCB & Lens & End Product is optional *Model design-Die Casting- CKD / SKD - Finished Product all can |
||||
|
Model |
GLD-ST104EM |
|
Power |
30W/50W/80W/100W/150W/200W |
|
IP level |
IP65 |
|
IK level |
IK08 |
|
Install Tube Dia |
D50/D60mm |
|
Install ways |

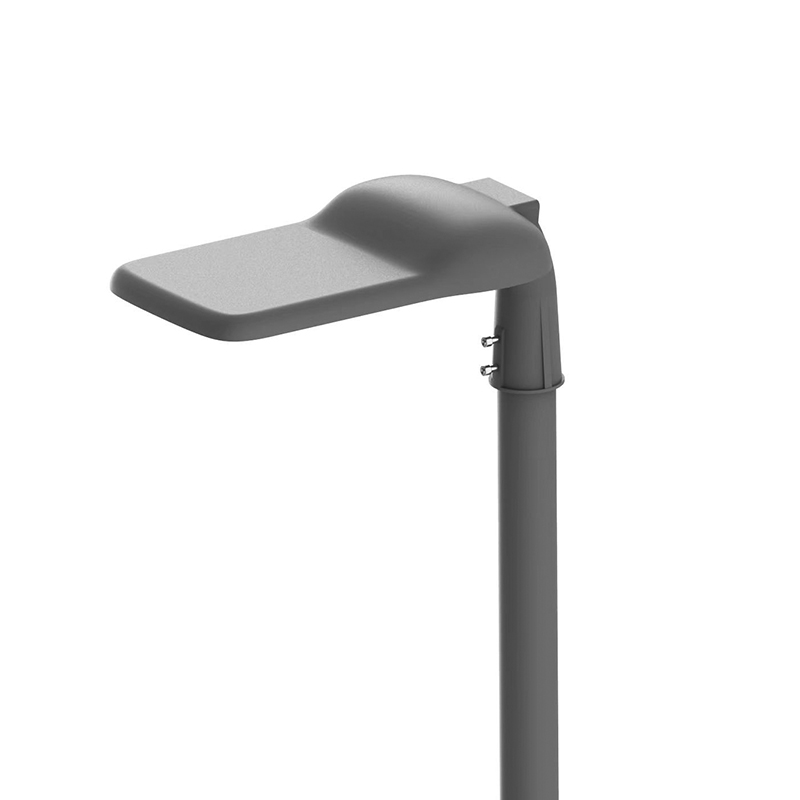

+ - 15degree adjustable both Post-top or Side-Entry mounted |
|
Materials |

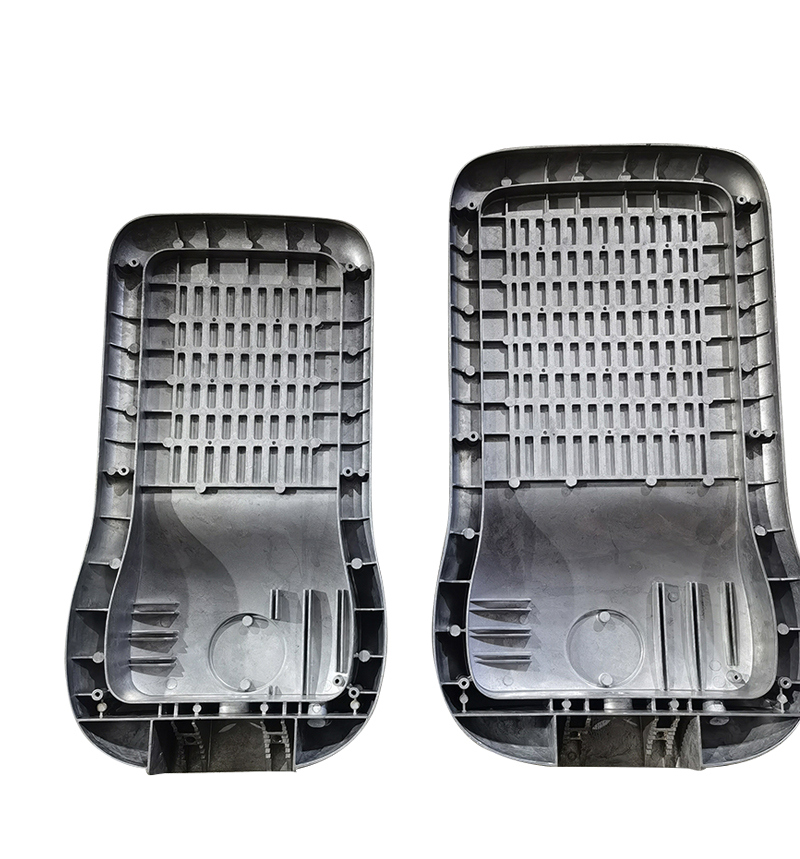

Housing: ADC12 die-cast aluminum |
|
Spray |
Finished by high-end outdoor epoxy power, resistant corrosion, 500hours salt spray testing certificates, no problem using on the seaside road |
|
Advantage |
The top cover uses a large area heat-sink fin design theory, in favor of the convection between cold and hot air, to keep the good heat dissipation of lamps and finally increase the light whole time light Ventilation design theory to dust prevention & prevent stagnant water to achieve the light long-lifetime |
|
Color |
Grey/Black/White |
|
Accessories are optional |
PCB(w/o led), Lens |
|
Electric Parts are optional |
Sosen, Inventronics, Meanwell or Specified brand; SMD3030, SMD5050, CREE |
